ECQ-E6104JF by panasonic

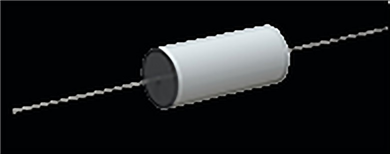

Image is representational - see manufacturer specifications
Panasonic Authorized Distributor

ECQ-E6104JF

The ECQ-E6104JF is a metallized polyester film capacitor with a capacitance of 0.1 µF, a rated voltage of 630V DC, and a tolerance of ±5%. ...

View Datasheet Ask the Datasheet
RoHS Compliant
Bag Packaging
Accessories
Certificate of Compliance

DESCRIPTION

The ECQ-E6104JF is a non-inductive, metallized polyester film capacitor from the ECQE(F) series. It offers a capacitance of 0.1 µF with a ±5% tolerance and a rated voltage of 630V DC. This component features a self-healing property and is encased in a flame-retardant epoxy resin coating, ensuring reliability and safety. It is designed to operate within a wide temperature range of -40 °C to +105 °C, though derating is required above 85 °C. With its excellent electrical characteristics, including a low dissipation factor and high insulation resistance, it is well-suited for a variety of general-purpose electronic applications.

Search Keywords: ECQE6104JF

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Panasonic
Part No:
ECQ-E6104JF
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8532250010
COO:
CN
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1000
Package Type:
Bag
Dielectric:
PET
Voltage:
630 VDC
Capacitance Value:
0.1 uF
Tolerance:
5 %
Mounting:
Through Hole
Termination Style:
Radial
Size:
18.5 x 6.3 x 14 mm

IN STOCK: 5,500

Can Ship immediately

On Order: 5,000   can ship 9/7/26

Minimum Order Quantity: 100

Factory Lead-Time 20 Weeks

Price (USD)

Qty
Unit Price
100
$0.3673
500
$0.3359
1,000
$0.3224
3,000
$0.3009
5,000
$0.2910
8,000
$0.2818
15,000
$0.2696
25,000 +
$0.2596
Supplier's Standard Package
