1521575

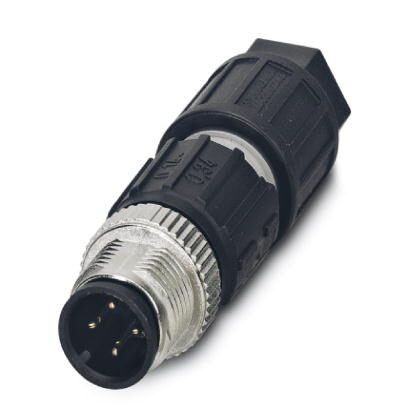

Phoenix Contact CanadaSensor/actuator connector - Universal - 4-position - Plug straight M12 SPEEDCON - A-coded - Insulation displacement connection - knurl material: Zinc die-cast - nickel-plated - external cable diameter 3.5 mm ... 6 mm ...
RoHS Compliant
Discontinued & Replaced
DESCRIPTION
This Sensor/actuator connector (part number 1521575) by PHOENIX CONTACT is a universal 4-position plug with a straight M12 SPEEDCON design. Featuring an A-coded insulation displacement connection, this connector is made with high-quality zinc die-cast material that is nickel-plated for durability. It is suitable for use with external cables with a diameter ranging from 3.5 mm to 6 mm.
Search Keywords: 1521575
SPECIFICATIONS
Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Phoenix Contact Canada
Part No:
1521575
RoHS:
Yes
HTS:
85366990
COO:
DE
Supplier Standard Pack:
1
Type:
Sensor Actuator
Gender:
M
Body Orientation:
Straight
Mounting:
Cable Mount
Number of Contacts:
4
Contact Gender:
M
Contact Plating:
Gold over Nickel
Termination Method:
Quick Connect
Maximum Current Rating:
4 A
Maximum Voltage Rating:
125 V
Life Cycle:
Discontinued & Replaced
This product is not in stock and cannot be back-ordered
Datasheet
