1641785 by phoenix contact canada

1641785

Phoenix Contact Canada

Sensor/actuator connector - Universal - 4-position - Plug straight M12 - A-coded - Insulation displacement connection - knurl material: Zinc die-cast - nickel-plated - external cable diameter 4 mm ... 8 mm ...

Datasheet
RoHS Compliant
Packaging
Accessories
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

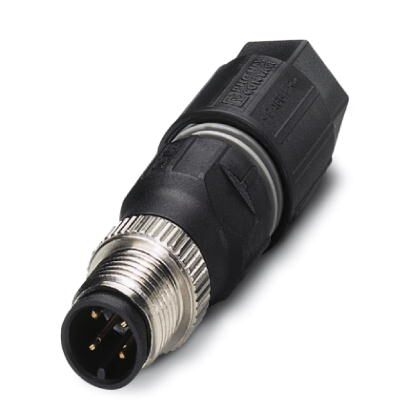

1641785 is a 4-position, straight plug, universal M12 sensor/actuator connector. This A-coded connector is connected by insulation displacement connection which allows connection without stripping any single wire. Contact material is made of Copper Tin in bright alloy/white bronze finish and knurl material is nickel plated zinc die-cast. The product has housing diameter of 18.4mm, length of 55mm, and external cable diameter of 4mm to 8mm. Conductor cross section is 18 to 22 AWG.

Search Keywords: 1641785

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Phoenix Contact Canada
Part No:
1641785
RoHS:
Yes
HTS:
85366990
COO:
DE
Supplier Standard Pack:  This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1
Type:
Sensor Actuator
Gender:
PL
Body Orientation:
Straight
Mounting:
Cable Mount
Number of Contacts:
4
Contact Gender:
M
Contact Plating:
Gold over Nickel
Maximum Current Rating:
4 A
Maximum Voltage Rating:
250 VAC

IN STOCK: 0

Manufacturer Stock: 75   can ship 12/5/25

Minimum Order: 5

Factory Lead-Time 7 Weeks can ship 1/8/26

Price (CAD)

Qty
Unit Price
5
$17.961
25
$16.285
50
$15.552
100
$14.885
250
$14.269
500
$13.898
1,000 +
$13.685
