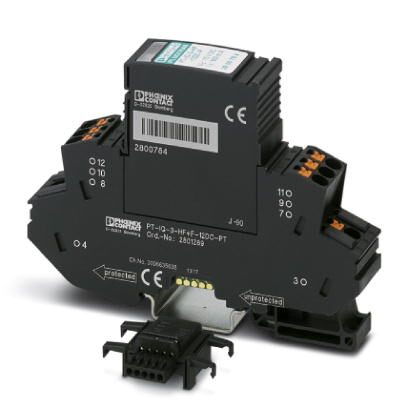

Image is representational - see mfr. specs
PT-IQ-3-HF+F-12DC-UT
Phoenix Contact CanadaSurge protection - consisting of protective plug and base element - with integrated multi-stage status indicator on the module for three signal wires with common reference potential. For HF applications and telecommunications interfaces without supply voltage (up to 90 Mbps). ...
RoHS Compliant
Discontinued & Replaced
DESCRIPTION
Surge protection - consisting of protective plug and base element - with integrated multi-stage status indicator on the module for three signal wires with common reference potential. For HF applications and telecommunications interfaces without supply voltage (up to 90 Mbps).
Search Keywords: PTIQ3HFF12DCUT
SPECIFICATIONS
Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Phoenix Contact Canada
Part No:
PT-IQ-3-HF+F-12DC-UT
Alias/AKA:
PT-IQ-3-HF+F-12DC-UT, 2800995, PT-IQ-3-HF+F-12DC-PT
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
85363010
COO:
DE
Supplier Standard Pack:
1
Attenuation:
0.3 dB
Clamping Voltage:
15,10 VDC|VAC
Dimension:
77.5mm x 17.7mm x 91.1 mm
Maximum Surge Current:
20 kA
Mounting:
DIN Rail
Type:
Connector
Maximum Response time:
1 ns
Nominal Line Voltage:
12 VDC
Life Cycle:
Discontinued & Replaced
This product is not in stock and cannot be back-ordered
Datasheet
