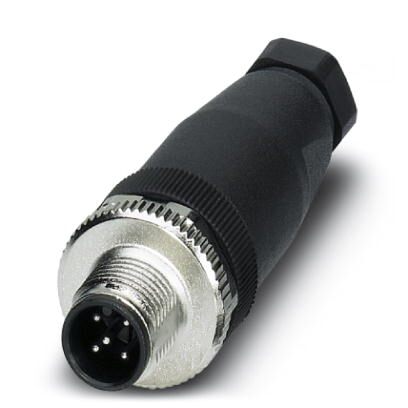

SACC-M12MS-5CON-PG 7-M by phoenix contact canada

SACC-M12MS-5CON-PG 7-M

Phoenix Contact Canada

Connector - Universal - 5-position - Plug straight M12 - A-coded - Screw connection - knurl material: Zinc die-cast - nickel-plated - cable gland Pg7 - external cable diameter 4 mm ... 6 mm ...

Datasheet
RoHS Compliant
Packaging
Accessories
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

1663116 is a 5-position, straight plug, universal M12 connector. This A-coded connector is screw connected, which is a proven connection technology for a large selection of different conductors. Contact material is made of Copper Zinc in bright alloy/white bronze finish and knurl material is nickel plated zinc die-cast. The product has Pg7 cable glands, housing diameter of 20mm, length of 60mm, and external cable diameter of 4mm to 6mm. Conductor cross section is 18 to 24AWG.

Search Keywords: SACCM12MS5CONPG7M

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Phoenix Contact Canada
Part No:
SACC-M12MS-5CON-PG 7-M
RoHS:
Yes
HTS:
85366990
COO:
DE
Supplier Standard Pack:  This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1
Type:
Sensor Actuator
Gender:
PL
Body Orientation:
Straight
Mounting:
Cable Mount
Number of Contacts:
5
Contact Gender:
M
Contact Plating:
Nickel

IN STOCK: 0

Manufacturer Stock: 140   can ship 12/1/25

Factory Lead-Time 30 Weeks can ship 6/18/26

Price (USD)

Qty
Unit Price
1
$14.393
10
$12.845
25
$12.459
50
$12.102
100
$11.439
250
$11.132
500 +
$10.968
Log in for special pricing
Click for Quote
