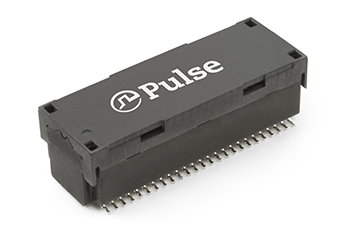

HX5020NL by pulse electronics

HX5020NL

Pulse Electronics

MDL,DUAL,1GD,1:1,SMT,TU NPB

Datasheet
RoHS Compliant
Tube Packaging
Accessories
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

The HX5020NL is pulse transformer with dimensions: 1.100 L x 0.297" W x 0.341" H (27.94mm x 7.54mm x 8.66mm). Operating temperature range is from -40°C to 85°C."

Search Keywords: HX5020NL

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Pulse Electronics
Part No:
HX5020NL
RoHS:
Yes
HTS:
8517790000
COO:
CN
ECCN:
EAR99
Supplier Standard Pack:  This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
15
Package Type:
Tube
Dimension:
27.94mm x 10.92mm x 8.33mm
Family:
HX5020
Lead Style:
Gull Wing
Maximum DCR Primary Side:
0.65 Ohm
Maximum DCR Secondary Side:
0.65 Ohm
  Possible Replacement options available.  See Alternatives

IN STOCK: 300

Ships today, if you order in

Minimum Order: 15

Multiple: 15

Factory Lead-Time 9 Weeks

Price (CAD)

Qty
Unit Price
15
$22.082
30
$21.147
60
$20.398
105
$19.876
255
$19.065
510
$18.162
1,005 +
$18.069
Suppliers Standard Package
Log in for special pricing
Click for Quote
