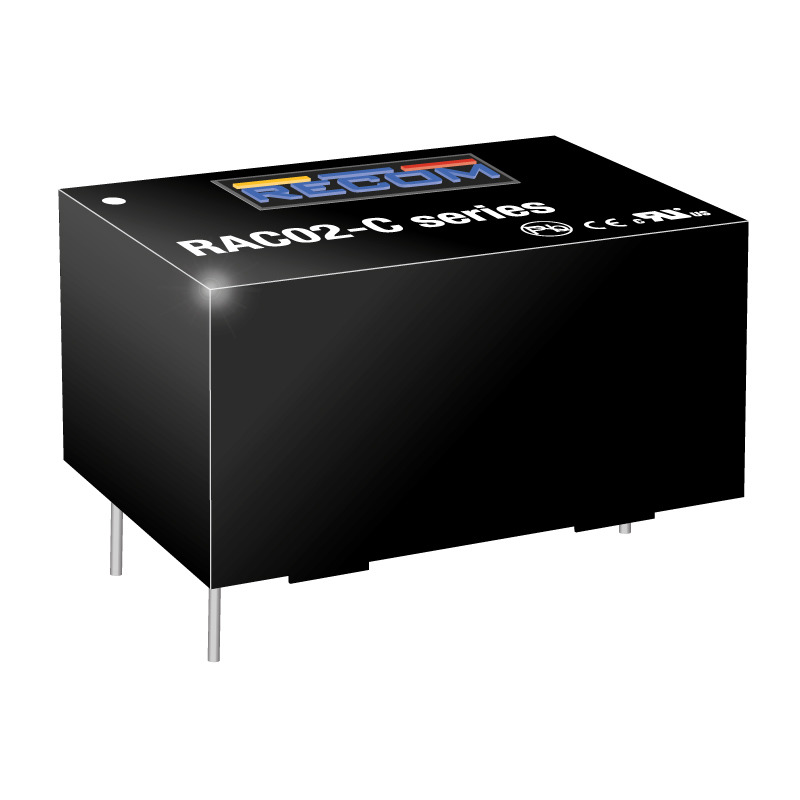

Image is representational - see mfr. specs

RAC02-15SC

The RAC02-15SC is a compact, 2W regulated AC/DC power module for PCB mounting that converts a universal AC input to a single 15VDC output. ...

Datasheet

RoHS Compliant

TUBE Packaging

Discontinued & Replaced

DESCRIPTION

The RAC02-15SC is a 2W, ultra-compact AC/DC power module designed for PCB mounting, providing a regulated 15VDC output. It operates from a universal input voltage range of 80-264VAC and delivers an output current of 133mA with a typical efficiency of 74%. Key features include 3kVAC isolation, low no-load power consumption of 30mW, and built-in short-circuit protection with automatic recovery. This Class II power supply is EN, UL, and CE certified, making it suitable for a wide range of applications where a reliable, low-profile power source is required.

Product Highlights:

Potential Applications:

Search Keywords: RAC0215SC

SPECIFICATIONS

Product Attribute

Attribute Value

Select Attribute

Products found: 0

Supplier:

RECOM

Part No:

RAC02-15SC

Unit of Measure:

Per Each

RoHS:

Yes

HTS:

8504409580

COO:

ECCN:

EAR99

Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
