199ADX-4 by schneider electric-legacy relays

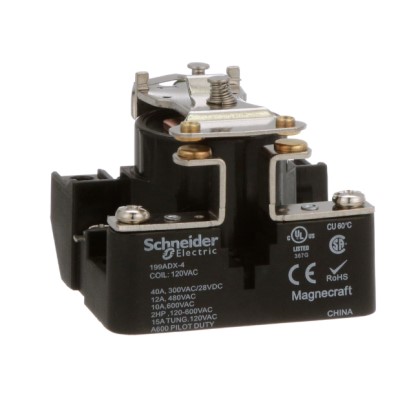

Image is representational - see mfr. specs

199ADX-4

Schneider Electric-Legacy Relays

Power relay - SE Relays - SPST-NO-DM - 40A - 120 VAC - open type, ...

Datasheet
RoHS Compliant
Packaging
Accessories
Discontinued & Replaced
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

The MAGNECRAFT / SCHNEIDER ELECTRIC 199ADX-4 is a powerful electromechanical relay designed for high voltage applications. With a voltage rating of 120VAC and a low coil resistance of 290Ohm, this relay is capable of handling heavy electrical loads up to 40A. The SPST-NO-DM configuration ensures reliable performance in a variety of industrial settings. Measuring 63.5x61.7x55.37 mm, this power relay is compact and easy to install. Trust the quality and durability of MAGNECRAFT / SCHNEIDER ELECTRIC for your relay needs.

Search Keywords: 199ADX4

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Schneider Electric-Legacy Relays
Part No:
199ADX-4
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536490075
COO:
CN
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1
Relay Construction:
Non-Latching
AC Coil Voltage:
120 V
DC Coil Voltage:
N/A
Contact Arrangement:
SPST-NO-DM
Maximum Current Rating:
40 A
Mounting:
N/A
Termination Style:
Screw Terminal
Push to Test Button:
No
Led Indicator:
No
Operating Temperature:
-40 to 55 °C
Life Cycle:
Discontinued & Replaced
  This product is discontinued, but still in stock

IN STOCK: 88

Can Ship immediately

Price (USD)

Qty
Unit Price
1
$88.58
10 +
$76.22
Log in for special pricing Click for Quote Price Match Request
Older Equivalent
W199ADX-4
W199ADX-4
VIEW PRODUCT

Tools/3D Models

Product Guides

Accessories

50-1289-1

Enclosure Metal Universal Mount
