199AX-9 by schneider electric-legacy relays

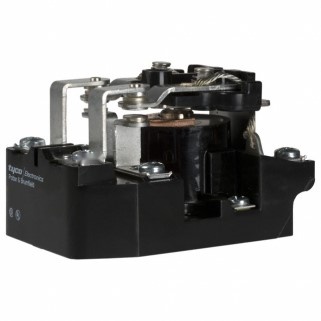

Image is representational - see manufacturer specifications
Schneider Electric-Legacy Relays Authorized Distributor

199AX-9

Power Relay - DPST-NO - open cover type - screw terminal - 40A - 120V AC - 2NO ...

View Datasheet
RoHS Compliant
Packaging
Accessories
Discontinued
Certificate of Compliance

DESCRIPTION

The 199AX-9 Electromechanical Relay by Magnecraft / Schneider Electric is a high-quality power relay designed to provide reliable switching performance. This DPST-NO (Double-Pole Single-Throw Normally Open) relay operates at 120VAC and delivers a maximum current carrying capacity of 40A. Its compact size of 63.6 x 63.2 x 49.6mm allows for convenient installation in various applications. The 199AX-9 relay is engineered to offer robust performance and long-lasting durability, making it an ideal choice for demanding industrial and commercial electrical systems.

Search Keywords: 199AX9

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Schneider Electric-Legacy Relays
Part No:
199AX-9
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536490075
COO:
CN
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1
Relay Construction:
Non-Latching
AC Coil Voltage:
120 V
DC Coil Voltage:
N/A
Contact Arrangement:
DPST-NO
Maximum Current Rating:
40 A
Mounting:
N/A
Termination Style:
Screw Terminal
Push to Test Button:
No
Led Indicator:
No
Operating Temperature:
-55 to 55 °C
Life Cycle:
Discontinued
  This product is discontinued, but still in stock

IN STOCK: 180

Can Ship immediately

On Order: 320   can ship 10/5/26
On Order: 80   can ship 11/2/26

Price (USD)

Qty
Unit Price
1
$96.19
10 +
$77.64
Log in for special pricing Click for Quote Price Match Request
