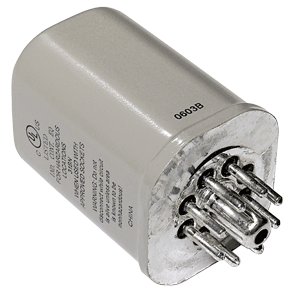

750XBXH-120A by schneider electric-legacy relays

750XBXH-120A

Schneider Electric-Legacy Relays

Relay - General Purpose Relays - DPDT - hermetically - hazardous location series - octal terminal 8 pins - 12A - 120V AC - 2NC + 2NO ...

Datasheet
RoHS Compliant
Packaging
Accessories
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

The Magnecraft / Schneider Electric 750XBXH-120A is a versatile and reliable electromechanical relay designed for general purpose applications. It operates on a voltage range of 110/120VAC and offers a high resistance of 9.1KOhm. With a double-pole, double-throw (DPDT) configuration, this relay is capable of handling a current of up to 12A. The compact dimensions of 38.6x34x52.07mm make it suitable for installation in tight spaces. Additionally, the relay comes with a socket for easy mounting and connection. With its high-quality construction and exceptional performance, the 750XBXH-120A is an ideal choice for various industrial and commercial applications.

Search Keywords: 750XBXH120A

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Schneider Electric-Legacy Relays
Part No:
750XBXH-120A
RoHS:
Yes
HTS:
8536490075
COO:
CN
ECCN:
EAR99
Supplier Standard Pack:  This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
10
Relay Construction:
Non-Latching
AC Coil Voltage:
110,120 V
DC Coil Voltage:
N/A
Contact Arrangement:
DPDT
Maximum Current Rating:
12 A
Mounting:
Socket
Termination Style:
8-Pin Circular Plug
Push to Test Button:
No
Led Indicator:
No
Operating Temperature:
-45 to 55 °C
Coil Resistance:
9.1 KOhm

IN STOCK: 143

Ships today, if you order in

Factory Lead-Time 9 Weeks

Price (USD)

Qty
Unit Price
1
$145.508
5
$143.232
10
$139.699
20
$138.999
30
$131.356
50 +
$130.697
Suppliers Standard Package
Log in for special pricing
Click for Quote

Tools/3D Models

Product Guides

Accessories

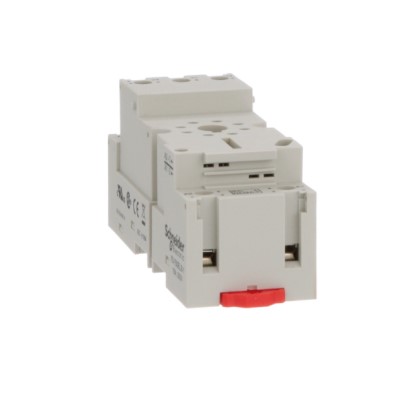

70-169-1

Socket - SE Relays general purpose relay accessory - DPDT - 15A - 300 V - 8 pins - screw c ...

70-464-1

Socket - General Purpose Relays - for 750H/750 relays - DPDT - 8 pins - screws clamp termi ...

70-750DL8-1

Socket - General Purpose Relays - for 750H/750 relays - DPDT - 8 pins - screws clamp termi ...

70-750E8-1

Socket - SE Relays general purpose relay accessory - DPDT - 12A - 300 V - 8 pins - lift te ...

70-750EL8-1

Socket - SE Relays general purpose relay accessory - DPDT - 16A - 300V - 8 pins - lift ter ...

Show 3 More
