750XBXH-24A by schneider electric-legacy relays
Image is representational - see mfr. specs

750XBXH-24A

Schneider Electric-Legacy Relays

Power relay - SE Relays - 12A - DPDT - 24 VAC - hermetically sealed contacts - hazardous location series ...

Datasheet
RoHS Compliant
Packaging
Accessories
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

The Magnecraft / Schneider Electric part 750XBXH-24A is a high-quality electromechanical relay designed for general-purpose applications. It operates at 24VAC voltage and offers a resistance of 1.7KOhm. This DPDT (Double Pole Double Throw) relay has a maximum current rating of 12A, making it suitable for a wide range of electrical systems. With its compact dimensions (38.6x34x52.07mm) and convenient socket installation, this relay provides reliable and efficient switching capabilities. Ideal for various industrial and commercial applications, the Magnecraft / Schneider Electric 750XBXH-24A is a reliable and versatile solution for your relay needs.

Search Keywords: 750XBXH24A

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Schneider Electric-Legacy Relays
Part No:
750XBXH-24A
Alias/AKA:
KR-11AGE-24
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536410050
COO:
CN
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
60
Relay Construction:
Non-Latching
AC Coil Voltage:
24 V
DC Coil Voltage:
N/A
Contact Arrangement:
DPDT
Maximum Current Rating:
12 A
Mounting:
Socket
Termination Style:
8-Pin Circular Plug
Push to Test Button:
No
Led Indicator:
No
Operating Temperature:
-45 to 55 °C
Coil Resistance:
1.7 KOhm

IN STOCK: 10

Can Ship immediately

On Order: 60   can ship 11/16/26

Factory Lead-Time 30 Weeks

Price (USD)

Qty
Unit Price
1
$161.01
5
$148.14
10
$133.64
20
$129.93
60
$126.62
120 +
$125.99
Suppliers Standard Package
Log in for special pricing Click for Quote Price Match Request

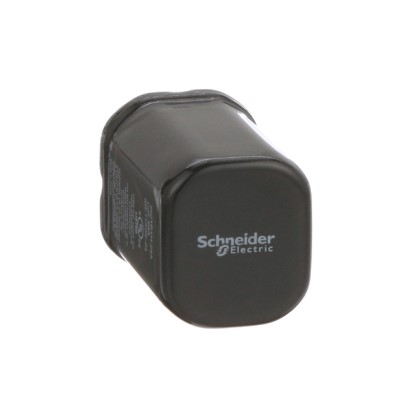

Older Equivalent
KR-11AGE-24
KR-11AGE-24
