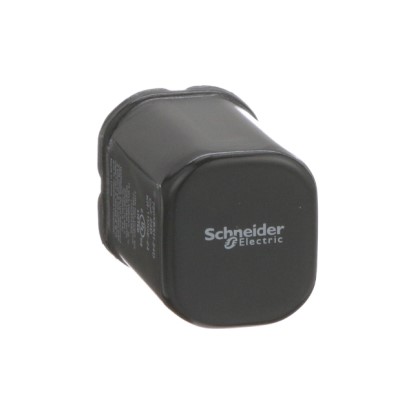

750XBXH-24D by schneider electric-legacy relays
Image is representational - see manufacturer specifications
Schneider Electric-Legacy Relays Authorized Distributor

750XBXH-24D

Relay - General Purpose Relays - DPDT - hermetically hazardous location series - octal terminal 8 pins - 12A - 24V DC - 2NC + 2NO ...

View Datasheet Ask the Datasheet
RoHS Compliant
Packaging
Accessories
Certificate of Compliance

DESCRIPTION

The Magnecraft / Schneider Electric part 750XBXH-24D is a high-quality electromechanical relay designed for general purpose applications. With a voltage rating of 24VDC and a coil resistance of 470 Ohm, this relay provides reliable switching capabilities. It features a DPDT (Double Pole Double Throw) configuration, allowing for versatile control of multiple circuits. The compact dimensions of 38.6x34x52.07mm make it suitable for space-constrained installations. Equipped with a socket, installation and replacement are made easy. This 12A rated relay is perfect for a wide range of industrial, commercial, and residential applications.

Search Keywords: 750XBXH24D

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Schneider Electric-Legacy Relays
Part No:
750XBXH-24D
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536410050
COO:
CN
ECCN:
EAR99
Supplier's Standard Package: The item count, length, weight, or volume contained in the supplier’s original packaging for efficient storage, handling, and distribution.
10
Relay Construction:
Non-Latching
AC Coil Voltage:
N/A
DC Coil Voltage:
24 V
Contact Arrangement:
DPDT
Maximum Current Rating:
12 A
Mounting:
Socket
Termination Style:
8-Pin Circular Plug
Push to Test Button:
No
Led Indicator:
No
Operating Temperature:
-45 to 70 °C
Coil Resistance:
470 Ohm
  Possible Replacement options available.  See Alternatives

IN STOCK: 313

Can Ship immediately

Factory Lead-Time 9 Weeks

Price (USD)

Qty
Unit Price
1
$201.04
5
$188.45
10
$183.01
20
$177.59
50
$170.42
100 +
$165.01
Supplier's Standard Package
Log in for special pricing

Tools/3D Models

Product Guides

Accessories

70-464-1

Socket - General Purpose Relays - for 750H/750 relays - DPDT - 8 pins - screws clamp termi ...

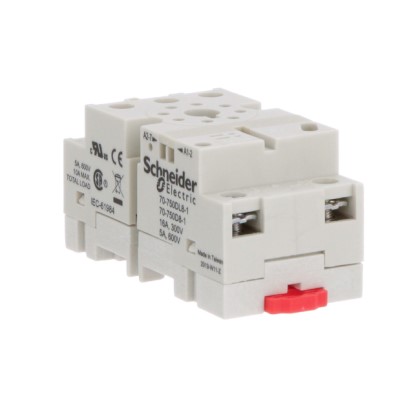

70-750DL8-1

Socket - General Purpose Relays - for 750H/750 relays - DPDT - 8 pins - screws clamp termi ...

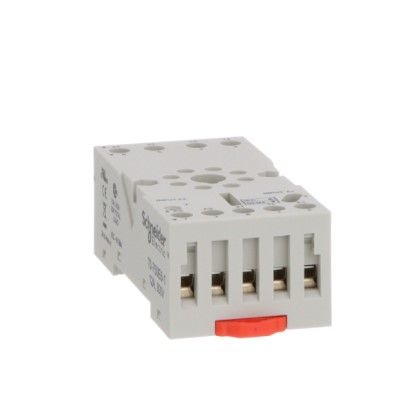

70-750E8-1

The 70-750E8-1 is an 8-pin, DPDT general-purpose relay socket accessory rated for 12A and ...

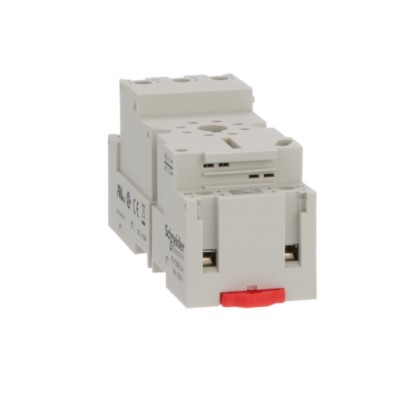

70-750EL8-1

Socket - SE Relays general purpose relay accessory - DPDT - 16A - 300V - 8 pins - lift ter ...
