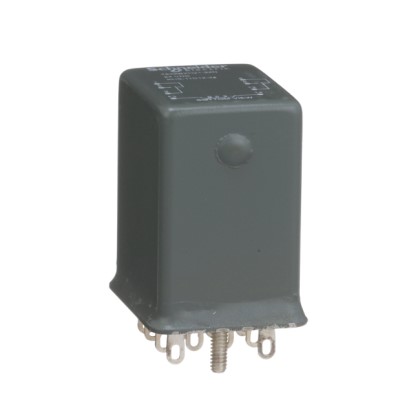

782XBXH21-24D by schneider electric-legacy relays

782XBXH21-24D

Schneider Electric-Legacy Relays

Hermetically sealed plug-in relays - SE Relays - 5A - 2 CO - 24VDC ...

Datasheet
RoHS Compliant
Packaging
Accessories
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

The Magnecraft / Schneider Electric 782XBXH21-24D is an electromechanical relay designed for various industrial applications. With a 24VDC operating voltage and a coil resistance of 650Ohm, this relay offers reliable performance for controlling electrical circuits. It features a 4PDT (4-pole double throw) configuration, allowing for versatile switching capabilities. The compact size of this relay (measuring 29.36x23.1mm) makes it suitable for use in tight spaces. With a maximum current rating of 5A, it can handle moderate to heavy loads. The included socket makes installation and replacement hassle-free. This ice cube relay is a cost-effective and dependable solution for your relay needs.

Search Keywords: 782XBXH2124D

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Schneider Electric-Legacy Relays
Part No:
782XBXH21-24D
RoHS:
Yes
HTS:
8536490050
COO:
CN
ECCN:
EAR99
Supplier Standard Pack:  This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1
Relay Construction:
Non-Latching
AC Coil Voltage:
N/A
DC Coil Voltage:
24 V
Contact Arrangement:
4PDT
Maximum Current Rating:
5 A
Mounting:
Socket
Termination Style:
Solder
Push to Test Button:
No
Led Indicator:
No
Operating Temperature:
-40 to 70 °C
Coil Resistance:
650 Ohm

IN STOCK: 60

Ships today, if you order in

Factory Lead-Time 34 Weeks

Price (CAD)

Qty
Unit Price
1
$108.431
5
$107.359
10
$98.769
25
$93.027
50
$89.107
100
$88.647
250 +
$88.218
