782XDXH21-120A by schneider electric-legacy relays

782XDXH21-120A

Schneider Electric-Legacy Relays

Hermetically sealed plug-in relays - SE Relays - 5A - 4 CO - 120VAC ...

Datasheet
RoHS Compliant
Packaging
Accessories
Discontinued
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

The Magnecraft / Schneider Electric part 782XDXH21-120A is an electromechanical relay designed for 110/120VAC applications. This four-pole double throw (4PDT) plug-in control relay is capable of handling currents up to 10A. With a resistance of 4.43KOhm, it provides reliable switching and control functions in a variety of industrial and commercial applications. Its easy plug-in installation makes it convenient for use in control panels or other systems requiring efficient and accurate relay operations. Trust the Magnecraft / Schneider Electric 782XDXH21-120A relay for dependable performance and robust electrical control.

Search Keywords: 782XDXH21120A

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Schneider Electric-Legacy Relays
Part No:
782XDXH21-120A
RoHS:
Yes
HTS:
8536490075
COO:
CN
ECCN:
EAR99
Supplier Standard Pack:  This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
10
Relay Construction:
Non-Latching
AC Coil Voltage:
110,120 V
DC Coil Voltage:
N/A
Contact Arrangement:
4PDT
Maximum Current Rating:
10 A
Mounting:
Connector
Termination Style:
Quick Connect
Push to Test Button:
No
Led Indicator:
No
Operating Temperature:
N/A
Coil Resistance:
4.43 KOhm
Life Cycle:
Discontinued
  This product is discontinued, but still in stock

IN STOCK: 29

Can Ship immediately

Price (CAD)

Qty
Unit Price
1
$193.802
5
$190.785
10
$183.817
15
$182.898
25
$177.922
50 +
$169.530
Suppliers Standard Package
Log in for special pricing
Click for Quote

Tools/3D Models

Product Guides

Accessories

70-782D14-1

Socket - Harmony Electromechanical Relays - for 782 relays - 4PDT - 14 pins - screws clamp ...

70-782E14-1

Socket - SE Relays - 10A - 17 pins - screw connectors - mixed contact - for 782 relays

70-461-1

Socket - SE Relays - 10A - 14 pins - screw clamp terminals - mixed contact - for 782H / 79 ...

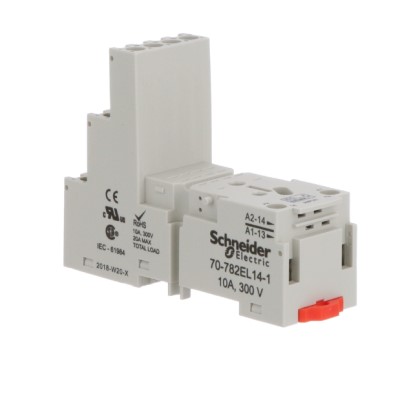

70-782EL14-1

Socket - SE Relays - 10A - 17 pins - screw connectors - separate contact - for 782 relays

Show 2 More
