784XDXM4L-24D

Power relay - SE Relays - 15A - 4PDT - 24 VDC - cover with locking push button and LED ...

View Datasheet Ask the Datasheet
RoHS Compliant
Packaging
Accessories
Discontinued
Certificate of Compliance

DESCRIPTION

The Magnecraft / Schneider Electric part 784XDXM4L-24D is a high-quality Electromechanical Relay designed for various applications. It operates at a voltage of 24VDC and has a resistance of 388Ohm. This relay features a 4PDT (4 Form C) configuration, allowing it to switch between multiple circuits simultaneously. With a maximum current rating of 15A, it can handle moderate to high power loads efficiently. The relay is designed for plug-in installation, making it easy to integrate into existing systems. Its compact size of 40.6x27.9mm ensures space-saving installation while maintaining excellent performance. Reliable and durable, this power relay is a versatile solution for industrial, automotive, and control system applications.

Search Keywords: 784XDXM4L24D

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Schneider Electric-Legacy Relays
Part No:
784XDXM4L-24D
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536410060
COO:
CN
ECCN:
EAR99
Supplier's Standard Package: The item count, length, weight, or volume contained in the supplier’s original packaging for efficient storage, handling, and distribution.
10
Relay Construction:
Non-Latching
AC Coil Voltage:
N/A
DC Coil Voltage:
24 V
Contact Arrangement:
4PDT
Maximum Current Rating:
15 A
Mounting:
Connector
Termination Style:
Quick Connect
Push to Test Button:
Yes
Led Indicator:
Yes
Operating Temperature:
-40 to 70 °C
Coil Resistance:
388 Ohm
Life Cycle:
Discontinued
  This product is discontinued, but still in stock

IN STOCK: 324

Ships today, if you order in

Minimum Order Quantity: 10

Multiple: 10

Price (USD)

Qty
Unit Price
10
$37.43
30
$36.62
50
$35.46
100
$35.38
250
$35.29
500
$35.20
1,000 +
$35.11
Supplier's Standard Package
Log in for special pricing

Tools/3D Models

Product Guides

Accessories

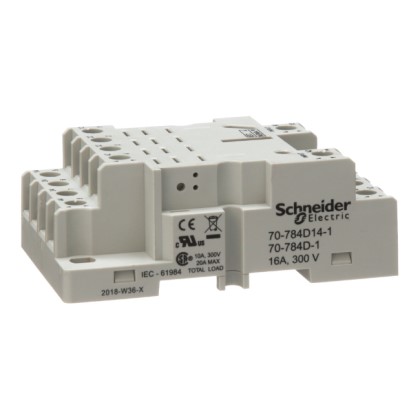

70-784D14-1

Socket - SE Relays general purpose relay accessory - 4PDT - 16A - 300 V - 14 pins - screw ...
