788XCXRC-24D by schneider electric-legacy relays

788XCXRC-24D

Schneider Electric-Legacy Relays

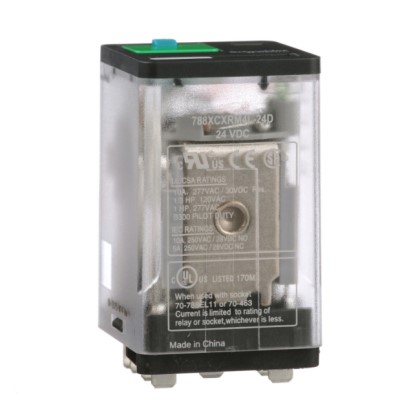

Plug-in electromechanical relay - General Purpose Relays - 788 R - 3PDT - clear cover - blade terminal - 10A - 24V DC - 3NC + 3NO ...

Datasheet
RoHS Compliant
Packaging
Accessories
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

The Magnecraft / Schneider Electric part 788XCXRC-24D is a 3PDT (3 pole double throw) blade terminal relay with a 10A@250VAC rating and a 24VDC coil. This relay is commonly used in various industrial and commercial applications where a reliable switching mechanism is required. With its clear cover, it offers easy visual inspection and protection to ensure optimal performance. The blade terminal design allows for easy installation and secure connections. Whether you need to control motors, lights, or other electrical loads, the 788XCXRC-24D relay is a high-quality solution that guarantees durability and precision.

Search Keywords: 788XCXRC24D

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Schneider Electric-Legacy Relays
Part No:
788XCXRC-24D
RoHS:
Yes
HTS:
8536410050
COO:
CN
ECCN:
EAR99
Supplier Standard Pack:  This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
60
Relay Construction:
Non-Latching
AC Coil Voltage:
N/A
DC Coil Voltage:
24 V
Contact Arrangement:
3PDT
Maximum Current Rating:
16 A
Mounting:
Socket
Termination Style:
Quick Connect
Push to Test Button:
No
Led Indicator:
No
Operating Temperature:
-40 to 55 °C
Coil Resistance:
470 Ohm

IN STOCK: 56

Ships today, if you order in

Factory Lead-Time 2 Weeks

Price (CAD)

Qty
Unit Price
1
$41.483
10
$37.150
25
$33.168
60
$28.038
120
$27.901
300
$27.763
540 +
$27.624
