TDR782XBXA-24D by schneider electric-legacy relays
Image is representational - see manufacturer specifications
Schneider Electric-Legacy Relays Authorized Distributor

TDR782XBXA-24D

Time delay relay - Harmony SE Relays - DPDT - 100ms to 100hours - 7 time scales - on-delay function - socket compatible - 5A - 24V DC

View Datasheet Ask the Datasheet
RoHS Compliant
Packaging
Accessories
Discontinued
Certificate of Compliance

DESCRIPTION

Time delay relay - Harmony SE Relays - DPDT - 100ms to 100hours - 7 time scales - on-delay function - socket compatible - 5A - 24V DC

Search Keywords: TDR782XBXA24D

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Schneider Electric-Legacy Relays
Part No:
TDR782XBXA-24D
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536410020
COO:
ID
ECCN:
EAR99
Supplier's Standard Package: The item count, length, weight, or volume contained in the supplier’s original packaging for efficient storage, handling, and distribution.
1
Mounting:
Socket
Type:
Time Delay Relay
Contact Arrangement:
DPDT
DC Coil Voltage:
24 V
AC Coil Voltage:
N/A
Contact Form:
2 Form C
Maximum Current Rating:
5 A
Termination Style:
Solder
Time Range:
0.1sec to 100h
Life Cycle:
Discontinued
  This product is discontinued, but still in stock

IN STOCK: 4

Can Ship immediately

Price (USD)

Qty
Unit Price
1
$143.17
7 +
$127.72
Log in for special pricing

Tools/3D Models

Product Guides

Accessories

70-461-1

Socket - SE Relays - 10A - 14 pins - screw clamp terminals - mixed contact - for 782H / 79 ...

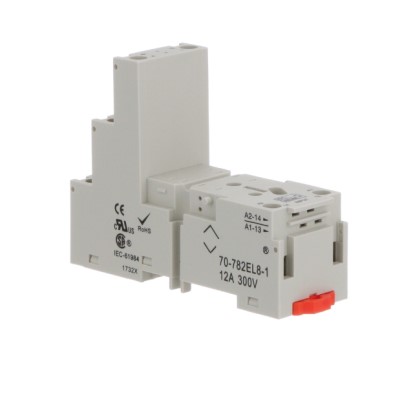

70-782EL8-1

Socket - SE Relays general purpose relay accessory - DPDT - 12A - 300 V - 8 pins - lift te ...

16-782CBJ-1

Coil bus jumper system - SE Relays - for 782H/792 relays - insulated

70-782D14-1

Socket - Harmony Electromechanical Relays - for 782 relays - 4PDT - 14 pins - screws clamp ...

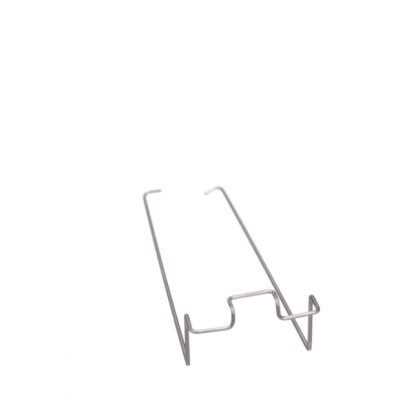

16-TDR782SC

Metal Retention Clip - SE Relays - time delay relay accessories - TDR782 series

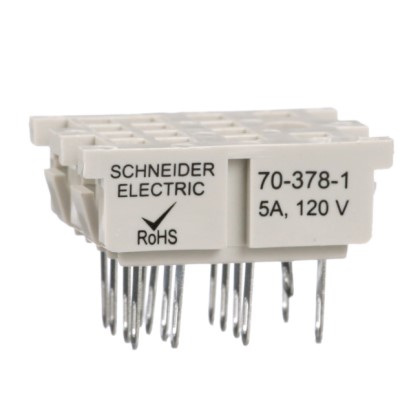

70-378-1

Socket - SE Relays - 5A - 14 pins - solder terminals - separate contact - for 782H / 792 r ...

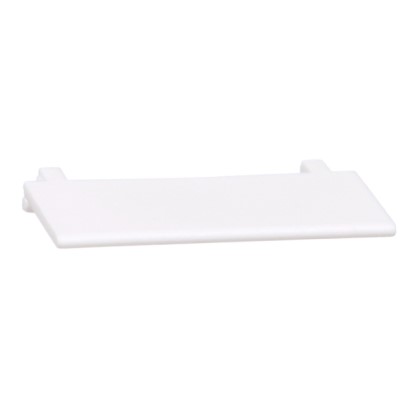

16-782FT-1

Plastic ID tag - SE Relays - for 782H/792 relays

70-782EL14-1

Socket - SE Relays - 10A - 17 pins - screw connectors - separate contact - for 782 relays

Show 6 More
