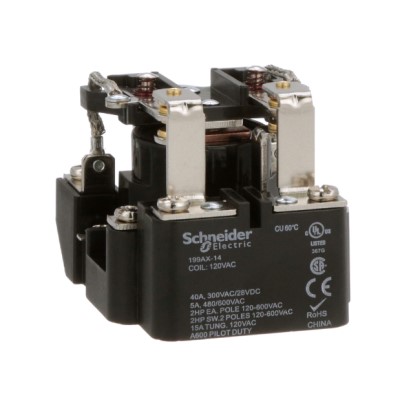

W199AX-14 by schneider electric-legacy relays
Image is representational - see manufacturer specifications
Schneider Electric-Legacy Relays Authorized Distributor

W199AX-14

Electromechanical Relay 120VAC 290Ohm 40A DPDT (63.5x79.2x58.67)mm Power Relay ...

View Datasheet Ask the Datasheet
RoHS Compliant
Packaging
Accessories
Discontinued
Certificate of Compliance

DESCRIPTION

The Magnecraft / Schneider Electric W199AX-14 is a high-quality electromechanical relay designed for reliable power switching applications. This relay operates on 120VAC and has a coil resistance of 290 Ohms, allowing it to handle heavy currents up to 40A. With its DPDT (Double Pole Double Throw) configuration, the W199AX-14 provides versatile and efficient power control. This compact relay measures 63.5x79.2x58.67mm, making it suitable for various industrial and commercial installations. Trust in the superior performance and durability of this Magnecraft / Schneider Electric power relay for your electrical applications.

Search Keywords: W199AX14

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Schneider Electric-Legacy Relays
Part No:
W199AX-14
Alias/AKA:
199AX-14
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536490075
COO:
CN
ECCN:
EAR99
Supplier's Standard Package: The item count, length, weight, or volume contained in the supplier’s original packaging for efficient storage, handling, and distribution.
10
Relay Construction:
Non-Latching
AC Coil Voltage:
120 V
DC Coil Voltage:
N/A
Contact Arrangement:
DPDT
Maximum Current Rating:
40 A
Mounting:
N/A
Termination Style:
Screw Terminal
Push to Test Button:
No
Led Indicator:
No
Operating Temperature:
-40 to 55 °C
Life Cycle:
Discontinued
  This product is discontinued, but still in stock

IN STOCK: 688

Ships today, if you order in

Price (USD)

Qty
Unit Price
1
$76.55
5
$75.80
10
$72.90
25
$71.03
50
$68.71
100
$64.18
250 +
$61.95
Supplier's Standard Package
Log in for special pricing
