W199X-12 by schneider electric-legacy relays

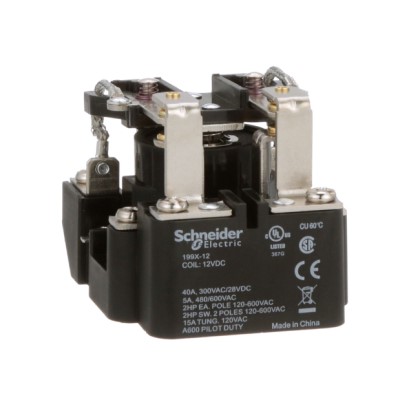

Image is representational - see mfr. specs

W199X-12

Schneider Electric-Legacy Relays

Electromechanical Relay 12VDC 70Ohm 40A DPDT (63.5x79.2x58.67)mm Power Relay ...

Datasheet
RoHS Compliant
Packaging
Accessories
Discontinued & Replaced
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

The W199X-12 electromechanical relay by Magnecraft / Schneider Electric is a high-quality power relay designed for various industrial applications. This DPDT (Double Pole Double Throw) relay operates on a 12VDC power supply and offers a low resistance of 70 Ohm, enabling efficient and reliable performance. With a robust construction and compact size measuring 63.5x79.2x58.67 mm, this relay is built for durability and can handle heavy loads up to 40A. Whether used in automotive, control systems, or other electrical applications, the W199X-12 relay provides reliable switching capability, ensuring smooth and uninterrupted power flow.

Search Keywords: W199X12

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Schneider Electric-Legacy Relays
Part No:
W199X-12
Alias/AKA:
199X-12
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536410050
COO:
CN
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
10
Relay Construction:
Non-Latching
AC Coil Voltage:
N/A
DC Coil Voltage:
12 V
Contact Arrangement:
DPDT
Maximum Current Rating:
40 A
Mounting:
N/A
Termination Style:
Screw Terminal
Push to Test Button:
No
Led Indicator:
No
Operating Temperature:
-40 to 55 °C
Life Cycle:
Discontinued & Replaced
  This product is discontinued, but still in stock

IN STOCK: 60

Ships today, if you order in

On Order: 32   can ship 5/18/26
On Order: 100   can ship 8/10/26
On Order: 100   can ship 9/7/26

Price (USD)

Qty
Unit Price
1
$50.63
5
$47.44
10
$46.08
25
$44.27
50
$42.89
100
$41.51
250 +
$39.70
Suppliers Standard Package
Log in for special pricing Click for Quote Price Match Request
RECOMMENDED REPLACEMENT
199X-12
199X-12
VIEW PRODUCT
