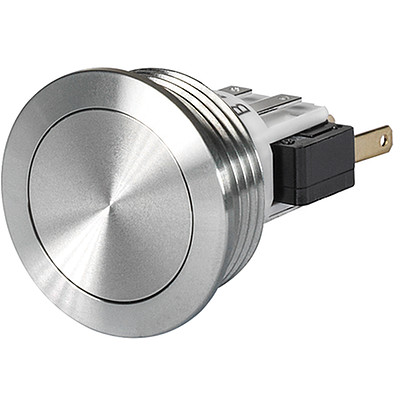

Image is representational - see manufacturer specifications
1241.6932.1120000
MSM22 DP LE SF 5 A @125VAC
RoHS Compliant
Box Packaging
Discontinued
Certificate of Compliance
DESCRIPTION
MSM DP 22, Momentary action switch double pole, 22 mm, Stainless Steel, LE, 125 / 250 VAC, 1250 W, 2 pole, N.O., N.C., N.O./N.C., non-illuminated Quick Connect Terminal, IK 07
Search Keywords: 124169321120000
SPECIFICATIONS
Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Schurter
Part No:
1241.6932.1120000
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536509035
COO:
CH
ECCN:
EAR99
Supplier Standard Pack:
20
Package Type:
Box
Mounting:
Panel Mount
Pole Throw Configuration:
DPDT
Bushing Type:
Threaded
Switch Configuration:
N.O./N.C.
Contact Rating @ Voltage:
5A@125 VAC
Actuator Style:
Flush Round Button
Illumination:
N/R
Terminal Type:
Quick Connect
Body Orientation:
Straight
Dimension:
27.6mm x 27.6mm x 39.15mm
Life Cycle:
Discontinued
This product has been discontinued by the supplier
CAD Drawing
Datasheet
