209-3-1-62-4-9-60 by sensata / airpax

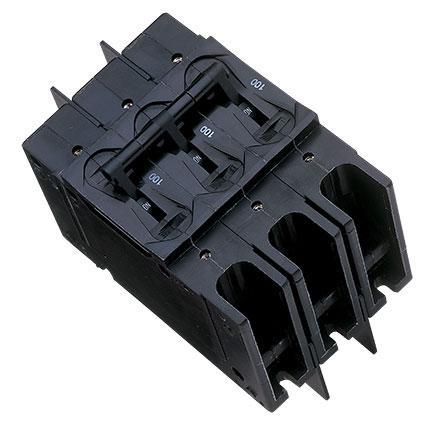

Image is representational - see manufacturer specifications
Sensata / AIRPAX Authorized Distributor

209-3-1-62-4-9-60

Circuit Breaker Magnetic ...

View Datasheet Ask the Datasheet
RoHS Compliant
Packaging
Accessories
Certificate of Compliance

DESCRIPTION

The 209-3-1-62-4-9-60 is a three-pole hydraulic-magnetic circuit breaker designed for branch circuit protection in applications such as EDP, air conditioners, panel boards, and lighting controls. This unit features a front-connected solderless connector (back-mounted) terminal configuration and complies with UL Standard 489. The breaker utilizes the hydraulic-magnetic principle to provide accurate and reliable circuit protection in a compact multipole assembly. Key dimensional specifications include a maximum width of 3.108 inches (78.94 mm), mounting insert depth of 160 mm minimum to 310 mm maximum, and 6-32 mounting inserts. The device is ideal for applications requiring dependable overload protection with flexible trip characteristics across various current levels and time delays.

Search Keywords: 20931624960

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Sensata / AIRPAX
Part No:
209-3-1-62-4-9-60
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536200020
COO:
MY
ECCN:
EAR99
Supplier's Standard Package: The item count, length, weight, or volume contained in the supplier’s original packaging for efficient storage, handling, and distribution.
3
Type:
Magnetic
Voltage Rating:
240 VAC
Number of Poles:
3
Current Rating:
60 A
Terminal Design:
Stud
Operating Temperature:
N/A
Mounting:
Panel Mount

IN STOCK: 10

Ships today, if you order in

Factory Lead-Time 9 Weeks

Price (USD)

Qty
Unit Price
1
$468.39
3
$456.39
6 +
$312.51
Supplier's Standard Package
Log in for special pricing
