IUGN6-1-51-15.0 by sensata / airpax

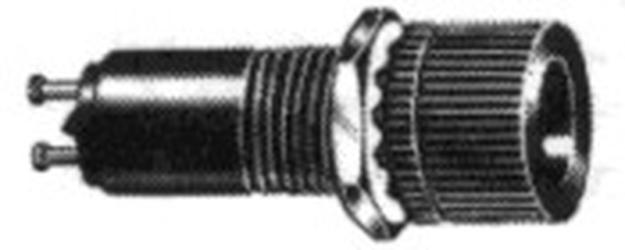

Image is representational - see mfr. specs

IUGN6-1-51-15.0

Sensata / AIRPAX

Circuit Breaker Hydraulic Magnetic 1Pole 15A 80VDC ...

Datasheet
RoHS Compliant
Packaging
Accessories
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

IUGN6-1-51-15.0 is a single-pole hydraulic magnetic circuit protector from the IAG/IUG/IEG/CEG/LEG series designed for reliable circuit protection and accurate circuit control in international equipment applications. This unit features a 15.0 ampere rated current with delay 51 characteristic, providing short delay response suitable for general-purpose applications. The protector operates with DC resistance of 0.055 ohms at rated current and AC impedance of 0.051 ohms at 50/60 Hz, ensuring minimal voltage drop during normal operation. The delay 51 curve provides trip times ranging from 0.5 to 6.5 seconds at 125% rated current down to 0.004 to 0.08 seconds at 1000% rated current, offering fast response to fault conditions while avoiding nuisance trips. This circuit protector is commonly used in automation systems, sensitive electronic equipment protection, and applications requiring precise overcurrent response characteristics.

Search Keywords: IUGN6151150

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Sensata / AIRPAX
Part No:
IUGN6-1-51-15.0
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536200020
COO:
MY
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
3
Type:
Hydraulic Magnetic
Voltage Rating:
80 VDC
Number of Poles:
1
Current Rating:
15 A
Terminal Design:
Screw
Operating Temperature:
-40 to 85 °C
Mounting:
Panel Mount

IN STOCK: 28

Can Ship immediately

Minimum Order Quantity: 3

Multiple: 3

Factory Lead-Time 13 Weeks

Price (USD)

Qty
Unit Price
3
$79.57
6
$59.03
12
$55.46
21
$55.06
51
$33.97
102 +
$30.06
