A4890 by sensata / crydom

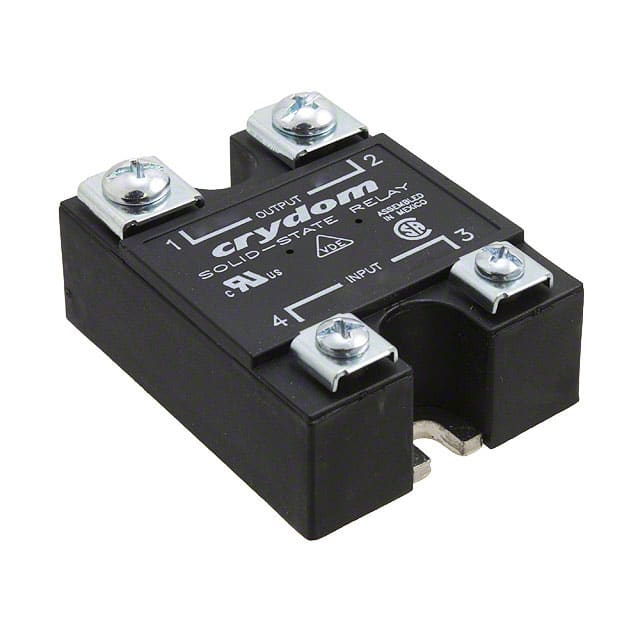

Image is representational - see mfr. specs

A4890

Sensata / Crydom

SOLID STATE RELAY 80-530 V - PM IP00 SSR 480VAC/90A,90-280VAC,ZC ...

Datasheet
RoHS Compliant
EACH Packaging
Accessories
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

The A4890 is a panel-mount solid-state relay designed for switching heavy industrial AC loads with SCR output technology. It features a 50 A rated load current at 48–530 VAC operating voltage, 90–280 Vrms AC control input, and supports both zero voltage and instantaneous turn-on switching modes. The relay offers a maximum on-state voltage drop of 1.15 Vrms at rated current, thermal resistance of 0.45 °C/W junction to case, and a 1 cycle surge current rating of 597 A peak at 50 Hz. It is rated for -40 °C to +80 °C ambient operating temperature, provides 4000 Vrms dielectric strength between input/output/base, and achieves an MTBF of 7,210,376 hours at 60 °C ambient. The A4890 is ideal for motor control, heating element switching, and other heavy industrial applications requiring reliable AC load management with UL/CSA/TUV approval and CE compliance to EN60950-1.

Search Keywords: A4890

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Sensata / Crydom
Part No:
A4890
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536490080
COO:
MX
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
10
Package Type:
EACH
Output Type:
AC
Maximum Output Voltage:
530 V
Maximum Output Current:
90 A
Output Device:
SCR
Input Type:
AC
Input Voltage:
280 V
Mounting:
Screw
Circuit Arrangement:
1 Form A
Dimension:
58.4 x 45.7 x 22.9 mm

IN STOCK: 0

On Order: 12   can ship 8/20/26

Factory Lead-Time 17 Weeks

Price (USD)

Qty
Unit Price
1
$136.36
5
$126.19
10
$120.78
20
$115.81
50
$112.72
100 +
$111.24
