CKRA2430

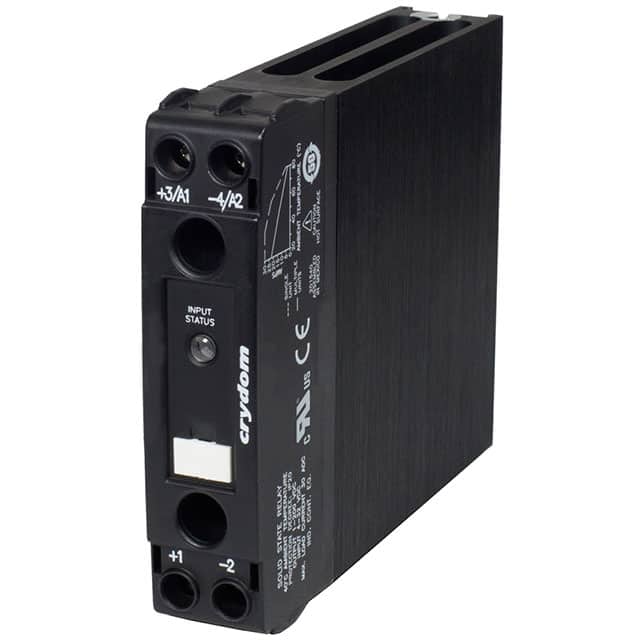

Sensata / CrydomSolis-State Relay - Control Voltage 110-280 VAC - Typical Input Current 5 mA/240VAC- LED Green Input Status - Output 24-280 VAC - Max Load Current 30 A - Din Rail - 4 Pins ...
RoHS Compliant
EACH Packaging
Discontinued & Replaced
Certificate of Compliance Guarantee
DESCRIPTION
The CKRA2430 is a solid-state relay without overvoltage protection. Input control voltage range is 110-280 VAC. Operating voltage is 24-280 VAC and the max load current is 30 A. Max wire size is #10 AWG (3mm). I/O isolation voltage is 4000 Vrms. Mounting type: din rail, screw. Switching type: zero voltage turn-on.
Search Keywords: CKRA2430
SPECIFICATIONS
Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Sensata / Crydom
Part No:
CKRA2430
RoHS:
Yes
HTS:
8536490080
COO:
MX
ECCN:
EAR99
Supplier Standard Pack:
1
Package Type:
EACH
Output Type:
AC
Maximum Output Voltage:
280(RMS) V
Maximum Output Current:
30(RMS) A
Output Device:
SCR
Input Type:
AC
Input Voltage:
280(RMS) V
Mounting:
DIN Rail
Circuit Arrangement:
1 Form A
Dimension:
81.9 x 22.5 x 99 mm
Life Cycle:
Discontinued & Replaced
This product is discontinued, but still in stock
IN STOCK: 8
Can Ship immediately
Price (CAD)
Qty
Unit Price
1
$184.797
5
$170.740
10
$162.196
20
$157.080
40
$156.300
80
$155.519
260
+
$154.739
