ALTERNATIVE PRODUCTS
RECOMMENDED REPLACEMENT

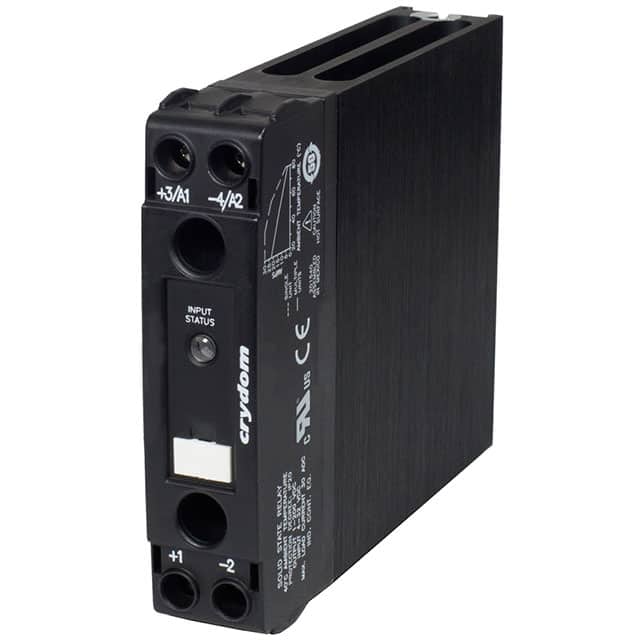

DR2260A30UR
DR2260A30UR

In Stock: 6

Minimum Order: 1

VIEW PRODUCT
CKRA4830-10 by sensata / crydom
Image is representational - see manufacturer specifications
Sensata / Crydom Authorized Distributor

CKRA4830-10

Solis-State Relay - Control Voltage 110-280 VAC - Typical Input Current 5 mA/240VAC- LED Green Input Status - Output 48-530 VAC - Max Load Current 30 A - Din Rail - 4 Pins ...

View Datasheet Ask the Datasheet
RoHS Compliant
EACH Packaging
Accessories
Discontinued & Replaced
Certificate of Compliance

DESCRIPTION

The CKRA4830-10 is a solid-state relay without overvoltage protection. Input control voltage range is 110-280 VAC. Operating voltage is 48-530 VAC and the max load current is 30 A. Max wire size is #10 AWG (3mm). I/O isolation voltage is 4000 Vrms. Mounting type: din rail, screw. Switching type: instantaneous turn-on.

Search Keywords: CKRA483010

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Sensata / Crydom
Part No:
CKRA4830-10
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536490080
COO:
MX
ECCN:
EAR99
Supplier's Standard Package: The item count, length, weight, or volume contained in the supplier’s original packaging for efficient storage, handling, and distribution.
1
Package Type:
EACH
Output Type:
AC
Maximum Output Voltage:
530(RMS) V
Maximum Output Current:
30(RMS) A
Output Device:
SCR
Input Type:
AC
Input Voltage:
280(RMS) V
Mounting:
DIN Rail
Circuit Arrangement:
N/A
Dimension:
81.9 x 22.5 x 99 mm
Life Cycle:
Discontinued & Replaced
  This product is discontinued, but still in stock

IN STOCK: 23

Can Ship immediately

Price (USD)

Qty
Unit Price
1
$92.99
4
$91.26
8
$89.53
16
$87.81
20 +
$86.10
Log in for special pricing

Tools/3D Models

Product Guides
