CWA4825

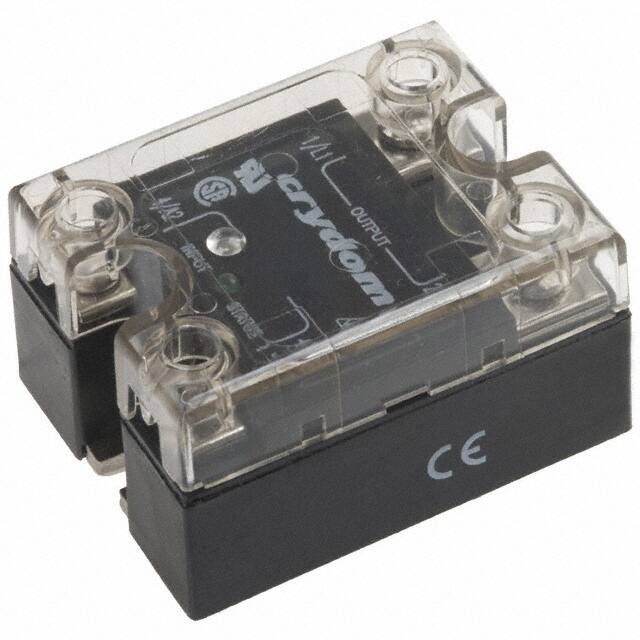

Sensata / CrydomSolid State Relay - 90-280 VAC Control - 25 A Max Load - 48-660 VAC Operating - Zero Voltage - LED Status - Panel Mount.
RoHS Compliant
EACH Packaging
Certificate of Compliance Guarantee
DESCRIPTION
The CWA4825 solid state relay has SCR output for heavy industrial loads and removable IP20 touch-safe cover. Dimensions of this relay (with cover) are: 2.32" (58.8mm) x 1.75" (44.5mm) x 1.22" (30.9mm).
Search Keywords: CWA4825
SPECIFICATIONS
Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Sensata / Crydom
Part No:
CWA4825
RoHS:
Yes
HTS:
8536490080
COO:
MX
ECCN:
EAR99
Supplier Standard Pack:
20
Package Type:
EACH
Output Type:
AC
Maximum Output Voltage:
660 V
Maximum Output Current:
25(RMS) A
Output Device:
SCR
Input Type:
AC
Input Voltage:
280(RMS) V
Mounting:
Screw
Circuit Arrangement:
1 Form A
Dimension:
45.7 x 58.4 x 33 mm
IN STOCK: 37
Can Ship immediately
MOQ for out of Stock Qty: 5
Factory Lead-Time 14 Weeks
