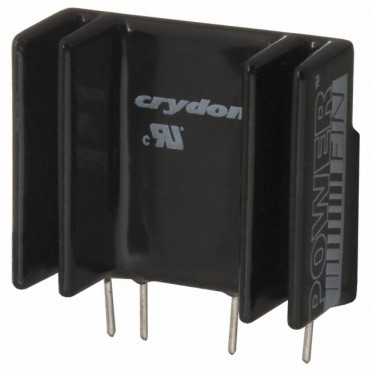

Image is representational - see manufacturer specifications
CX380D5
Solid State Relay - 3-15 VDC Control - 5 A Max Load - 48-530 VAC Operating - Zero Voltage - PCB Mounting.
RoHS Compliant
EACH Packaging
Certificate of Compliance
DESCRIPTION
The CX380D5 solid state relay has SCR output for heavy industrial loads. Dimensions of this relay are: 1.70" (43.1mm) x 1" (25.4mm) x 0.30" (7.6mm).
Search Keywords: CX380D5
SPECIFICATIONS
Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Sensata / Crydom
Part No:
CX380D5
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536490080
COO:
MX
ECCN:
EAR99
Supplier's Standard Package:
40
Package Type:
EACH
Output Type:
AC
Maximum Output Voltage:
530 V
Maximum Output Current:
5 A
Output Device:
SCR
Input Type:
DC
Input Voltage:
15 V
Mounting:
Through Hole
Circuit Arrangement:
1 Form A
Dimension:
43.1(Max) x 7.6(Max) x 25.4(Max) mm
IN STOCK: 0
Factory Lead-Time 8 Weeks
Price (USD)
Qty
Unit Price
1
$27.12
5
$21.67
10
$21.35
40
$20.62
80
$20.52
120
$20.41
280
+
$20.01
CAD Drawing
Datasheet
Selecting a SSR
Learn more about Sensata | Crydom CX and CMX Series PCB Mount Solid State Relays
