D1D40K by sensata / crydom

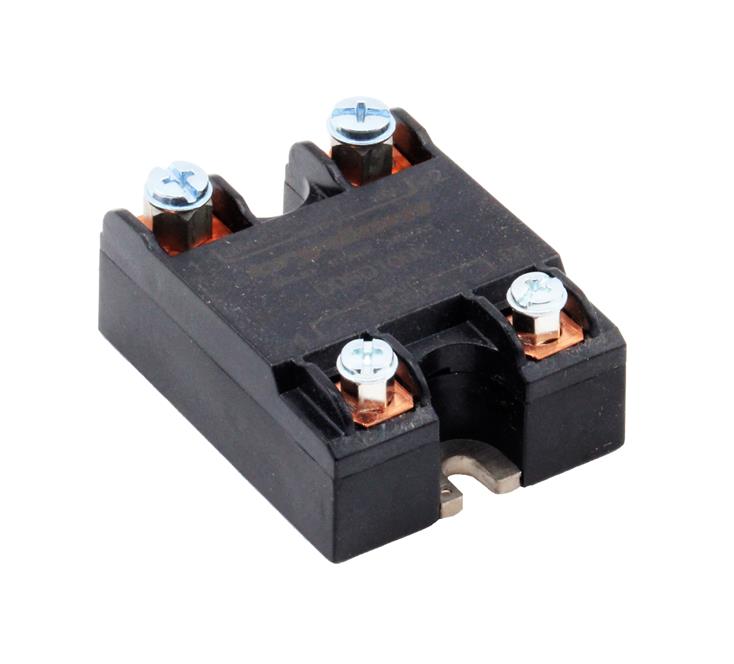

Image is representational - see manufacturer specifications
Sensata / Crydom Authorized Distributor

D1D40K

Solid State Relay - 3.5-32 VDC Control - 40 A Max Load - 100 VDC Operating - Mosfet Output - Installed Standoffs With Screws For PC Board Mounting.

View Datasheet Ask the Datasheet
RoHS Compliant
EACH Packaging
Accessories
Certificate of Compliance

DESCRIPTION

The D1D40K solid state relay has improved SEMS screw and washer. Redesigned housing with anti-rotation barriers. Dimensions of this relay are: 1.75" (44.5mm) x 2.25" (57.3mm) x 1" (25.4mm).

Search Keywords: D1D40K

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Sensata / Crydom
Part No:
D1D40K
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536490080
COO:
MX
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
20
Package Type:
EACH
Output Type:
N/A
Maximum Output Voltage:
N/A
Maximum Output Current:
N/A
Output Device:
MOSFET
Input Type:
DC
Mounting:
Screw
Circuit Arrangement:
N/A
Dimension:
44.5 x 57.3 x 26.4 mm

IN STOCK: 0

On Order: 120   can ship 11/25/26
On Order: 120   can ship 12/9/26

Factory Lead-Time 10 Weeks

Price (USD)

Qty
Unit Price
1
$108.76
5
$106.98
10
$103.16
20
$102.91
60
$102.65
100 +
$102.39
Supplier's Standard Package
Log in for special pricing

Tools/3D Models

Product Guides

Product Changes
