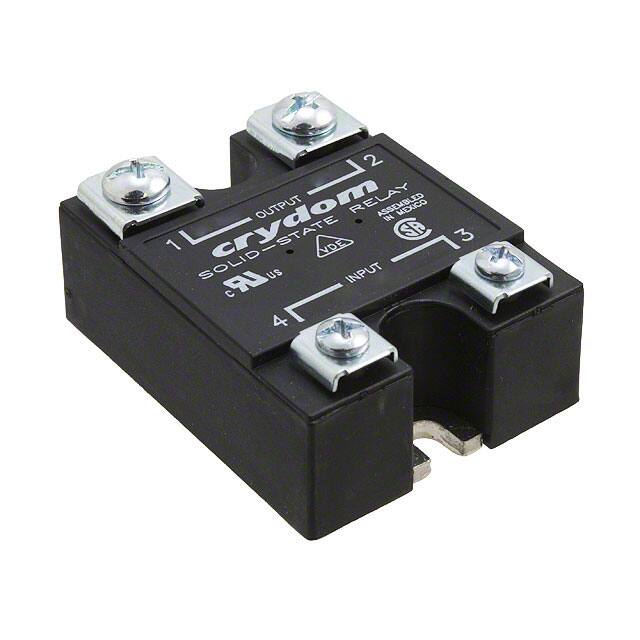

D1D80 by sensata / crydom

D1D80

Sensata / Crydom

Solid-State Relay - Control Voltage 3.5-32 VDC - Max Input Current 15 mA - Output 0-100 VDC - Max Load Current 80 A - 4 Pins - Screw Termination ...

Datasheet
RoHS Compliant
EACH Packaging
Accessories
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

The D1D80 is a solid-state relay D series with MOSFET output. Input control voltage range is 3.5-32 VDC. Operating voltage is 0-100 VDC and the max load current is 60 ADC. D series relay has redesigned housing with anti-rotation barriers. I/O isolation voltage is 3750 Vrms. Mounting type: panel mount.

Search Keywords: D1D80

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Sensata / Crydom
Part No:
D1D80
RoHS:
Yes
HTS:
8536490080
COO:
MX
ECCN:
EAR99
Supplier Standard Pack:  This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
10
Package Type:
EACH
Output Type:
DC
Maximum Output Voltage:
100 V
Maximum Output Current:
80 A
Output Device:
MOSFET
Input Type:
DC
Input Voltage:
32 V
Mounting:
Screw
Circuit Arrangement:
N/A
Dimension:
58.4 x 45.7 x 22.9 mm

IN STOCK: 78

Ships today, if you order in

On Order: 260   can ship 1/23/26

Factory Lead-Time 16 Weeks

Price (CAD)

Qty
Unit Price
1
$226.786
3
$224.336
5
$223.218
10 +
$210.952
