D2425P by sensata / crydom

D2425P

Sensata / Crydom

Solid-State Relay - Control Voltage 3-32 VDC - Max Input Current 12 mA - Output 24-280 VAC - Max Load Current 25 A - 4 Pins - 1 Form A - Screw Termination ...

Datasheet
RoHS Compliant
EACH Packaging
Accessories
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

The D2425P is a solid-state relay series 1 with SCR output for heavy industrial loads and overvoltage protection. Input control voltage range is 3-32 VDC. Operating voltage is 24-280 VAC and the max load current is 25 A. Series 1 relay has redesigned housing with anti-rotation barriers. I/O isolation voltage is 4000 Vrms. Switching type: zero voltage turn-on. Mounting type: panel mount.

Search Keywords: D2425P

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Sensata / Crydom
Part No:
D2425P
RoHS:
Yes
HTS:
8536490080
COO:
MX
ECCN:
EAR99
Supplier Standard Pack:  This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
20
Package Type:
EACH
Output Type:
AC
Maximum Output Voltage:
280(RMS) V
Maximum Output Current:
25(RMS) A
Output Device:
SCR
Input Type:
DC
Mounting:
Screw
Circuit Arrangement:
1 Form A
Dimension:
44.5 x 57.3 x 22.6 mm

IN STOCK: 0

On Order: 20   can ship 2/20/26

Factory Lead-Time 15 Weeks

Price (CAD)

Qty
Unit Price
1
$91.582
5
$71.384
20
$70.276
40
$69.922
60
$69.568
100
$69.228
260 +
$68.874
Suppliers Standard Package
Log in for special pricing
Click for Quote

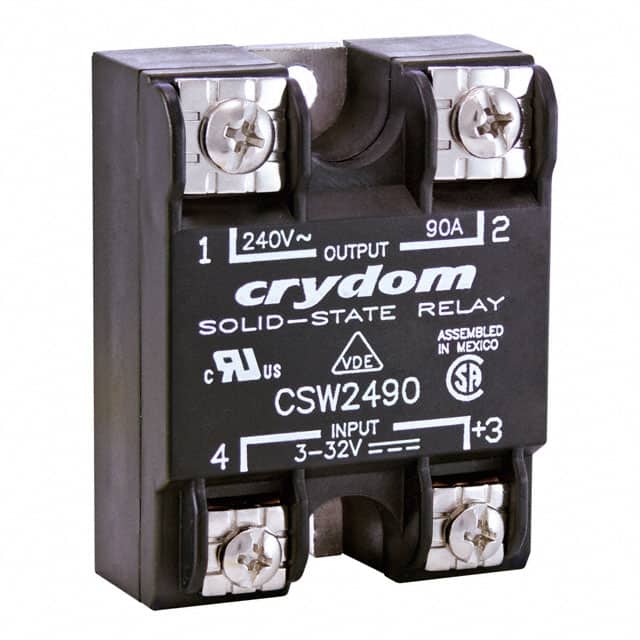

Older Equivalent
CSW2425P
CSW2425P
VIEW PRODUCT
