D2D07 by sensata / crydom

D2D07

Sensata / Crydom

Solid-State Relay - Control Voltage 3.5-32 VDC - Max Input Current 15 mA - Output 1-200 VDC - Max Load Current 7 A - 4 Pins - 1 Form A - Screw Termination ...

Datasheet
RoHS Compliant
EACH Packaging
Accessories
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

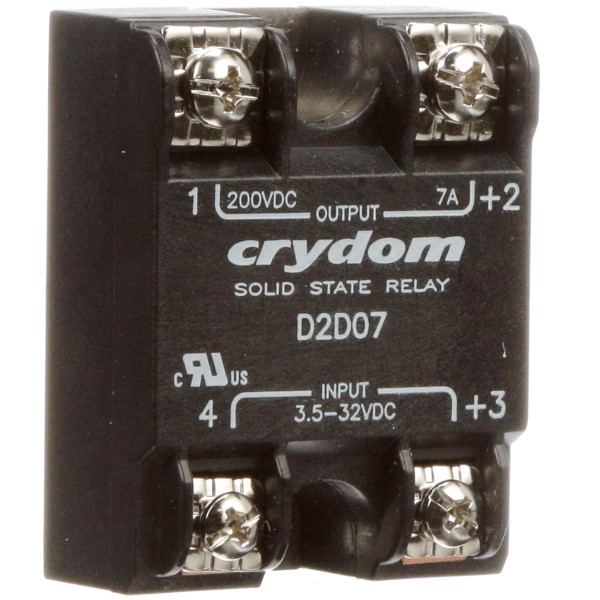

The D2D07 is a solid-state relay 1-DC series with MOSFET output. Input control voltage range is 3.5-32 VDC. Operating voltage is 1-200 VDC and the max load current is 7 A. 1-DC series relay has redesigned housing with anti-rotation barriers. I/O isolation voltage is 3750 Vrms. Mounting type: panel mount.

Search Keywords: D2D07

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Sensata / Crydom
Part No:
D2D07
RoHS:
Yes
HTS:
8536490080
COO:
MX
ECCN:
EAR99
Supplier Standard Pack:  This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
20
Package Type:
EACH
Output Type:
DC
Maximum Output Voltage:
200 V
Maximum Output Current:
7 A
Output Device:
MOSFET
Input Type:
DC
Input Voltage:
32 V
Mounting:
Screw
Circuit Arrangement:
N/A
Dimension:
45.7 x 58.4 x 23 mm

IN STOCK: 31

Can Ship immediately

Factory Lead-Time 8 Weeks

Price (CAD)

Qty
Unit Price
1
$115.536
5
$112.152
10
$106.640
20
$106.104
40
$104.221
60 +
$100.300
