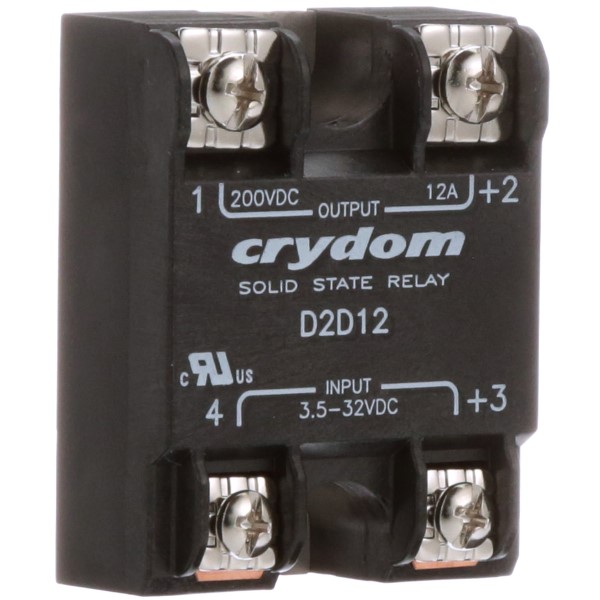

D2D12L by sensata / crydom
Image is representational - see manufacturer specifications
Sensata / Crydom Authorized Distributor

D2D12L

Solid-State Relay - Control Voltage 3.5-32 VDC - Max Input Current 15 mA - Output 1-200 VDC - Max Load Current 12 A - 4 Pins - 1 Form A - Screw Termination ...

View Datasheet
RoHS Compliant
EACH Packaging
Accessories
Discontinued & Replaced
Certificate of Compliance

DESCRIPTION

The D2D12L is a solid-state relay 1-DCL series with MOSFET output. Input control voltage range is 3.5-32 VDC. Operating voltage is 1-200 VDC and the max load current is 12 A. 1-DC series relay has redesigned housing with anti-rotation barriers. I/O isolation voltage is 3750 Vrms. Mounting type: panel mount.

Search Keywords: D2D12L

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Sensata / Crydom
Part No:
D2D12L
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536490080
COO:
MX
ECCN:
EAR99
Supplier's Standard Package: The item count, length, weight, or volume contained in the supplier’s original packaging for efficient storage, handling, and distribution.
1
Package Type:
EACH
Output Type:
DC
Maximum Output Voltage:
200 V
Maximum Output Current:
12 A
Output Device:
MOSFET
Input Type:
DC
Input Voltage:
32 V
Mounting:
Screw
Circuit Arrangement:
N/A
Dimension:
58.4 x 45.7 x 23 mm
Life Cycle:
Discontinued & Replaced
  This product is discontinued, but still in stock

IN STOCK: 8

Ships today, if you order in

Price (USD)

Qty
Unit Price
1
$111.10
5
$109.46
10
$108.91
40
$108.37
80
$107.83
120
$107.28
280 +
$106.75
