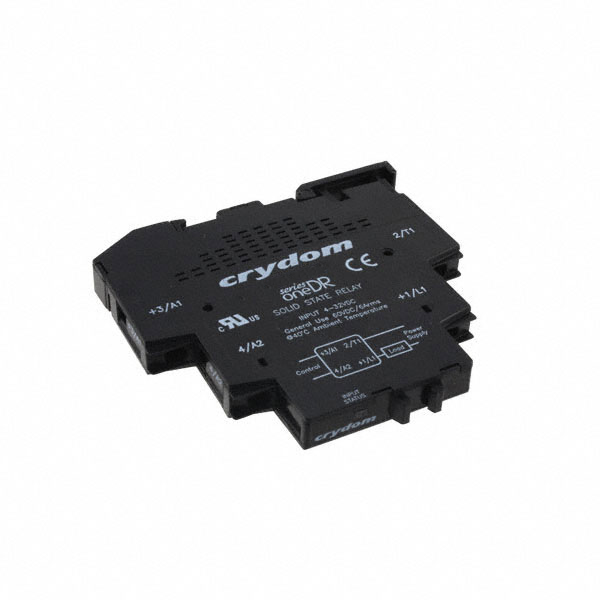

Image is representational - see mfr. specs

DR10D10

Sensata / Crydom

SSR Relay - DIN Rail Mount 11mm - 100VDC/10A - 4-32VDC In - FET Output ...

Datasheet

RoHS Compliant

EACH Packaging

Certificate of Compliance Guarantee

DESCRIPTION

DR10D10 is a DIN rail mount solid state relay from the SeriesOne DR series, designed for DC output switching applications. It features a maximum load current of 10 A with an operating voltage range of 1-100 VDC and a control voltage range of 4-32 VDC. The relay offers exceptionally low on-state resistance of 0.013 Ohm and a maximum on-state voltage drop of 0.2 V, with surge current capability up to 80 A for 10 ms. It operates over an ambient temperature range of -30 to 80°C and fits standard 35mm DIN rail in a compact 11mm wide housing. Common applications include battery management systems, backup power supplies, valve control, lighting control, and automation equipment where space-saving and high power density are required.

Product Highlights:

Potential Applications:

Search Keywords: DR10D10

SPECIFICATIONS

Product Attribute

Attribute Value

Select Attribute

Products found: 0

Supplier:

Sensata / Crydom

Part No:

DR10D10

Unit of Measure:

Per Each

RoHS:

Yes

HTS:

8536490080

COO:

ECCN:

EAR99

Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
