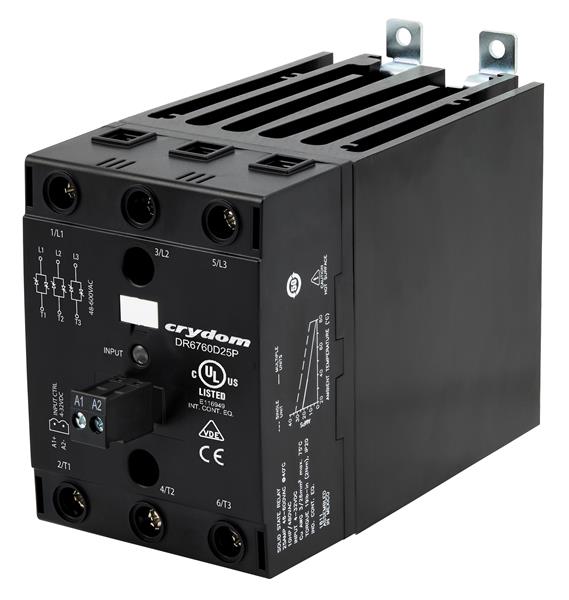

DR6760D25RP

3-Phase Solid-State Relay - Control Voltage 4-32 VDC - Max Input Current 40 mA - Output 48-600 VAC - Max Load Current 25 A - 3 Form A - IP20 - No Over Temperature Protection - 3 Controlled Legs ...

Datasheet

RoHS Compliant

EACH Packaging

Certificate of Compliance Guarantee

DESCRIPTION

The DR6760D25RP is a compact 3-phase solid state relay in a DIN rail 67.5mm wide package with internal overvoltage protection. Input control voltage range is 4-32 VDC. Operating voltage is 48-600 VAC and the max load current is 25 A. I/O isolation voltage is 4000 Vrms. Switching type: instantaneous turn-on.

Product Highlights:

Potential Applications:

Search Keywords: DR6760D25RP

SPECIFICATIONS

Product Attribute

Attribute Value

Select Attribute

Products found: 0

Supplier:

Sensata / Crydom

Part No:

DR6760D25RP

RoHS:

Yes

HTS:

8536509065

COO:

ECCN:

EAR99

Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
