RECOMMENDED REPLACEMENT
Image is representational - see manufacturer specifications

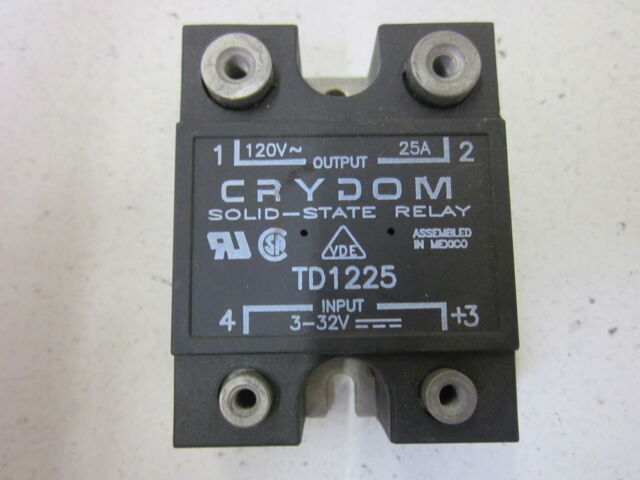

TD1225
SSR - DC Control - Control Voltage 3-32VDC/12mA - Output Voltage 24-140VAC - Max Load Current 25A - 1 Form A - Panel Mount - Screw Terminal
RoHS Compliant
EACH Packaging
Discontinued & Replaced
DESCRIPTION
The TD1225 is a SSR T Series with triac output and redesigned housing with anti-rotation barriers. Zero voltage (resistive loads) output. Operating temperature range: -40 to +80°C. Isolation voltage is 4000Vrms.
Search Keywords: TD1225
SPECIFICATIONS
Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Sensata / Crydom
Part No:
TD1225
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536490080
COO:
MX
ECCN:
EAR99
Supplier Standard Pack:
1
Package Type:
EACH
Output Type:
AC
Maximum Output Voltage:
140(RMS) V
Maximum Output Current:
25(RMS) A
Output Device:
Triac
Input Type:
DC
Input Voltage:
32 V
Mounting:
Screw
Circuit Arrangement:
1 Form A
Dimension:
58.4 x 45.7 x 23 mm
Life Cycle:
Discontinued & Replaced
This product is discontinued, but still in stock
IN STOCK: 63
Ships today, if you order in
Price (USD)
Qty
Unit Price
1
$204.08
3
$171.70
5
$161.44
10
$152.34
40
+
$127.26
