ALTERNATIVE PRODUCTS
RECOMMENDED REPLACEMENT
D2410
D2410

In Stock: 478

Minimum Order: 1

VIEW PRODUCT

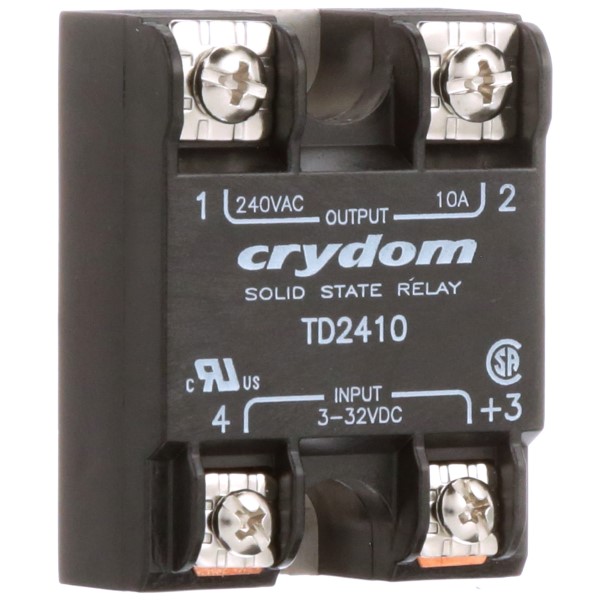

TD2410 by sensata / crydom
Image is representational - see manufacturer specifications
Sensata / Crydom Authorized Distributor

TD2410

SSR - DC Control - Control Voltage 3-32VDC/12mA - Output Voltage 24-280VAC - Max Load Current 10A - 1 Form A - Panel Mount - Screw Terminal

View Datasheet Ask the Datasheet
RoHS Compliant
EACH Packaging
Accessories
Discontinued & Replaced
Certificate of Compliance

DESCRIPTION

The TD2410 is a SSR T Series with triac output and redesigned housing with anti-rotation barriers. Zero voltage (resistive loads) output. Operating temperature range: -40 to +80°C. Isolation voltage is 4000Vrms.

Search Keywords: TD2410

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Sensata / Crydom
Part No:
TD2410
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536490080
COO:
MX
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1
Package Type:
EACH
Output Type:
AC
Maximum Output Voltage:
280(RMS) V
Maximum Output Current:
10(RMS) A
Output Device:
Triac
Input Type:
DC
Input Voltage:
32 V
Mounting:
Screw
Circuit Arrangement:
1 Form A
Dimension:
58.4 x 45.7 x 23 mm
Life Cycle:
Discontinued & Replaced
  This product is discontinued, but still in stock

IN STOCK: 19

Can Ship immediately

Price (USD)

Qty
Unit Price
1
$201.97
3
$169.92
5
$159.76
10
$150.77
40 +
$125.94
Log in for special pricing Click for Quote Price Match Request

Tools/3D Models

Product Guides
