3312185778

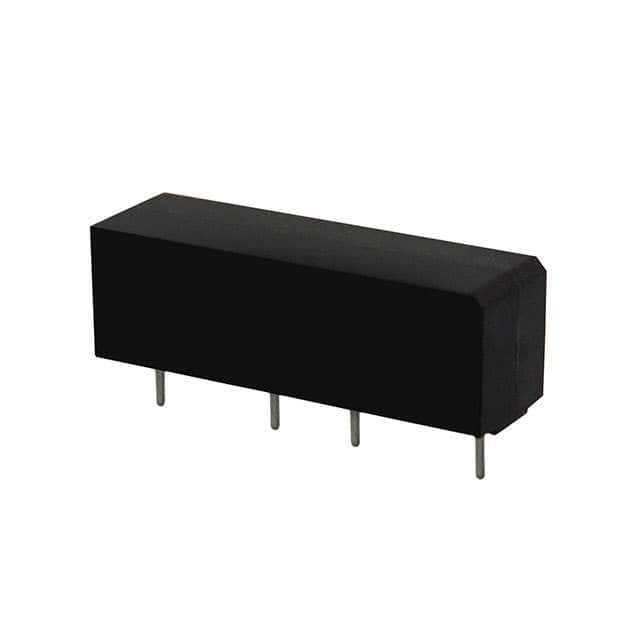

Standex ElectronicsReed Relay - SPST-NO (1 Form A) - 12VDC Coil - 24mA Coil - 1A Contact Rating - 500 Ohm Coil Resistance - PC Pin - Through Hole.
RoHS Compliant
Tube Packaging
Discontinued & Replaced
Certificate of Compliance Guarantee
DESCRIPTION
The 3312185778 is reed relay with maximum switching voltage 1000VAC/VDC. Operating temperature range is from -40°C to 100°C.
Search Keywords: 3312185778
SPECIFICATIONS
Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Standex Electronics
Part No:
3312185778
RoHS:
Yes
HTS:
8536410020
COO:
CN
ECCN:
EAR99
Supplier Standard Pack:
120
Package Type:
Tube
Led Indicator:
No
Coil Suppression Diode:
Yes
Packaging:
Tube
Maximum Contact Resistance:
150 mOhm
Terminal Type:
PC Pin
Relay Construction:
Non-Latching
Contact Arrangement:
SPST-NO
Maximum Carry Current:
2.5 A
Operate Time:
1.1 ms
Coil Resistance:
500 Ohm
Dimension:
24.13mm x 5.22mm x 8.13 mm
Coil Current:
24 mA
Maximum AC Switching Voltage:
1000 V
Maximum DC Switching Voltage:
1 KV
Minimum Dropout Voltage:
1.8 VDC
Maximum Switching Current:
1 A
Operating Temperature:
-40 to 105 °C
Release Time:
0.1 ms
Maximum Switching Power:
100 W
Maximum Pick-Up Voltage:
8.4 VDC
DC Coil Voltage:
12 V
Mounting:
Through Hole
Contact Form:
1 Form A
Number of Terminals:
4
Push to Test Button:
No
Seal:
Sealed
Insulation Resistance:
10 TOhm
Type:
Dry
Life Cycle:
Discontinued & Replaced
This product is discontinued, but still in stock
IN STOCK: 1,162
Ships today, if you order in
Minimum Order: 5
Price (CAD)
Qty
Unit Price
5
$15.604
25
$13.444
50
$13.307
120
$12.787
360
$12.634
600
$12.389
1,080
+
$12.173
Please Note:
Tariffs may apply for U.S. shipments
Datasheet
