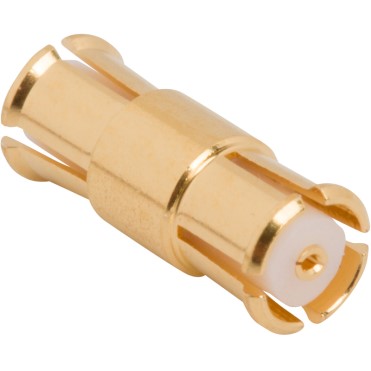

Image is representational - see mfr. specs

1132-4006

The 1132-4006 is a telescopic SMPM female-to-female adapter designed for high-frequency applications from DC to 40 GHz. ...

Datasheet

RoHS Compliant

TRAY Packaging

Certificate of Compliance Guarantee

DESCRIPTION

The 1132-4006 is a telescopic, female-to-female SMPM adapter designed for high-frequency interconnect systems. It operates with a 50 Ohm impedance across a frequency range of DC to 40 GHz, featuring a low VSWR of 1.4:1 maximum and an insertion loss of 0.5 dB maximum. The adapter is constructed with gold-plated beryllium copper contacts and PTFE insulators for robust performance. Its telescopic design allows for .020 inches of axial compression, making it ideal for compensating for mechanical tolerance stack-up in blind-mate and board-to-board RF connections.

Product Highlights:

Potential Applications:

Search Keywords: 11324006

SPECIFICATIONS

Product Attribute

Attribute Value

Select Attribute

Products found: 0

Supplier:

SV Microwave

Part No:

1132-4006

Unit of Measure:

Per Each

RoHS:

Yes

HTS:

8536694010

COO:

ECCN:

EAR99

Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
