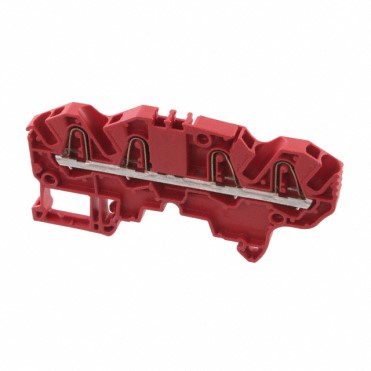

Name: 1SNK705030R0000
Brand: Te Connectivity Abb Entrelec
SKU: 50467662
Price: 37.16 USD
Availability: InStock

Products found: 0

Supplier:

TE Connectivity / ABB Entrelec

Part No:

1SNK705030R0000

Unit of Measure:

Per Each

RoHS:

Yes

HTS:

8536904000

COO:

FR

ECCN:

EAR99

Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.

This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.

50

Package Type:

Box

Wire Stripping Length:

.433 in, 11 mm

Impulse Withstanding Voltage Rating (IEC):

8000 V

Tool Size:

.138 in, 3.5 mm

Rated Cross Section:

12 AWG, 2.5 mm²

Product Depth:

40.2 mm

Housing Color:

Orange

Operating Voltage Rating (UL & CSA) (Max) - Main Circuit:

600 V

Current Rating (IEC):

24 A

Housing Material:

Polyamide

Block Configuration:

Feed-Through

Number of Positions:

2

Product Weight:

5.5 g, .217 oz

IP Rating:

IP20

Main Circuit Capacity - 1 Insulated Ferrule per Spring Clamp:

26 – 14 AWG, .22 – 2.5 mm²

Current Rating (CSA):

20 A

Product Length:

40.2 mm

Voltage Rating (CSA):

600 V

Connector Mounting Type:

DIN Rail

Main Circuit Capacity - Twin Ferrule per Spring Clamp:

26 – 20 AWG, .22 – .5 mm²

Current Rating (UL):

20 A

Number of Circuits:

1

Installation Temperature Range:

-5 – 40 °C, 23 – 104 °F

Operating Temperature Range:

-55 – 110 °C, -67 – 230 °F

Short-Time Withstanding Current Rating @ 1s:

300 A

Storage Temperature Range:

-55 – 110 °C, -67 – 230 °F

Product Height:

50.9 mm

Gauge Type:

A2 / 2.3 mm Dia.

Dielectric Test Voltage:

2200 V

Power Loss:

1 W

Number of Levels:

1

Main Circuit Capacity - 1 Rigid Conductor per Spring Clamp:

26 – 12 AWG, .2 – 4 mm²

Voltage Rating (IEC):

1000 V

DIN Rail Mounting Type:

TH35-15 , TH35-7.5

Product Spacing:

.205 in, 5.2 mm

UL Flammability Rating:

UL 94V-0

Modular Terminal Block Product Type:

PI-Spring Terminal Block
