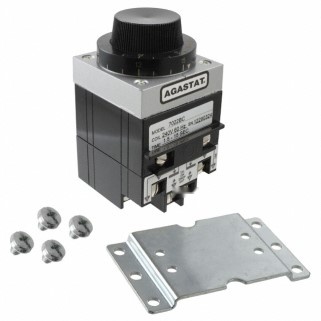

7022AC by te connectivity / agastat brand

7022AC

TE Connectivity / Agastat Brand

Industrial Electropneumatic Timing Relay - 2FormC - DPDT - 1.5 to 15 sec Off Delay - 120VAC 60 Hz / 110VAC 50Hz ...

Datasheet
RoHS Non-Compliant
Pack Packaging
Accessories
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

The TE Connectivity / Agastat Brand part 7022AC is an exceptional industrial electropneumatic timing relay designed for precise time control applications. With a 2FormC DPDT configuration, this relay ensures reliable and efficient operation in various industrial settings. It offers an off delay ranging from 1.5 to 15 seconds, making it ideal for applications that require a specific delay before turning off. Powered by 120VAC at 60 Hz or 110VAC at 50 Hz, this timing relay guarantees smooth and consistent performance. Its robust construction and advanced features make it a reliable choice for controlling timing sequences in industrial automation systems.

Product Highlights:

  • 7000 Electropneumatic Timing Series
  • Time Delay Relay
  • Input Voltage = 110 VAC, 120 VAC
  • Contact Arrangement = 2 Form C, DPDT, 2 C/O
  • Contact Rating = 10A @ 240 VAC

Search Keywords: 7022AC

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
TE Connectivity / Agastat Brand
Part No:
7022AC
RoHS:
No
HTS:
8536490075
COO:
US
ECCN:
EAR99
Supplier Standard Pack:  This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1
Package Type:
Pack
Mounting:
Panel Mount
Type:
Time Delay Relay
Contact Arrangement:
DPDT
DC Coil Voltage:
N/A
AC Coil Voltage:
115 V
Contact Form:
2 Form C
Maximum Current Rating:
10 A
Termination Style:
Screw Terminal
Time Range:
1.5 to 15 sec

IN STOCK: 0

On Order: 24   can ship 2/9/26
On Order: 17   can ship 3/9/26
On Order: 26   can ship 4/9/26

Factory Lead-Time 70 Weeks

Price (USD)

Qty
Unit Price
1
$638.755
3
$612.448
5 +
$609.389
Log in for special pricing
Click for Quote
Please Note: Tariffs may apply for U.S. shipments
