A201SYZB04 by te connectivity / alcoswitch brand

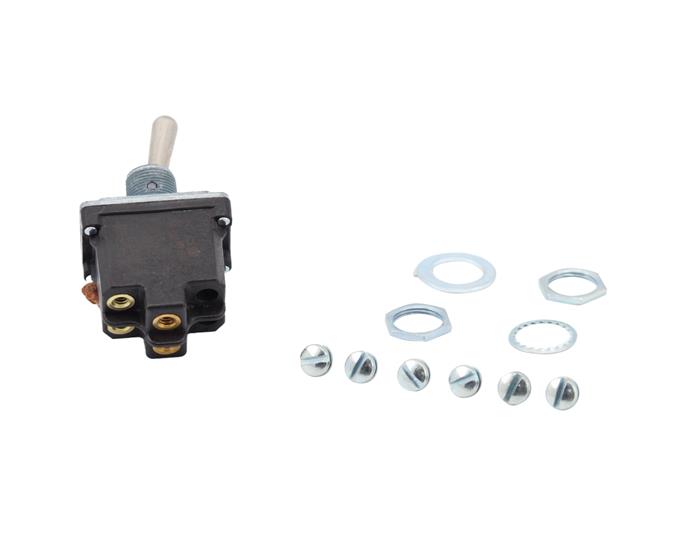

Image is representational - see mfr. specs

A201SYZB04

TE Connectivity / Alcoswitch Brand

Toggle Switch - DPDT - On-On - 0.4VA, 20VAC/DC - 10.41mm Round Actuator - 1/4-40 Bushing Thread - Solder Lug Termination - Panel Mount. ...

Datasheet
RoHS Compliant
Bag Packaging
Accessories
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

The A201SYZB04 from TE Connectivity / Alcoswitch Brand is panel mount, double pole double throw (DPDT) toggle switch with On-On switch function and solder lug termination. This switch has epoxy sealed terminals, 10.41mm long round actuator and 1/4-40 bushing thread. The A201SYZB04 toggle switch has copper contacts with gold plating and 0.4VA, 20VAC/DC ratings. Operating temperature range is from -30°C to 85°C.

Search Keywords: A201SYZB04

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
TE Connectivity / Alcoswitch Brand
Part No:
A201SYZB04
Alias/AKA:
2-1825138-7
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536509065
COO:
CN
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
100
Package Type:
Bag
Pole Throw Configuration:
DPDT
Switch Configuration:
On None On
Contact Rating @ Voltage:
0.4@20VAC 20VDC A
Actuator Style:
Long Baton Lever
Mounting:
Panel Mount with Threads
Thread Size:
1/4-40
Body Orientation:
Straight
Terminal Type:
Wire Lug
Dimension:
12.7mm x 11.43mm x 32.15 mm
Operating Temperature:
-30 to 85 °C

IN STOCK: 0

On Order: 1,000   can ship 8/10/26

Minimum Order Quantity: 10

Factory Lead-Time 15 Weeks

Price (USD)

Qty
Unit Price
10
$4.03
50
$3.28
100
$3.27
300
$3.04
500
$2.87
1,000
$2.68
2,500
$2.42
5,000 +
$2.09
Suppliers Standard Package
Log in for special pricing Click for Quote Price Match Request
Please Note: Tariffs may apply for U.S. shipments

Tools/3D Models

Product Guides
