FCB-205-0224M by te connectivity / cii brand

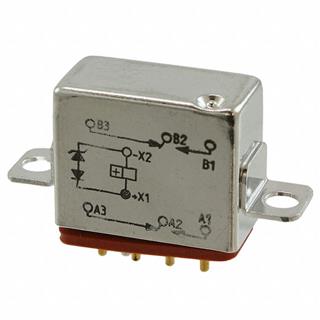

Image is representational - see mfr. specs

FCB-205-0224M

TE Connectivity / CII Brand

General Purpose Relay - DPDT (2 Form C) - 28VDC Coil - 5A Contact - 115VAC/28VDC Switching - Non Latching Coil - Plug In - Chassis Mount. ...

Datasheet
RoHS Compliant
Pack Packaging
Accessories
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

The FCB-205-0224M is hermetically sealed general purpose relay with operating temperature range from -70°C to 125°C.

Product Highlights:

  • FCB 5-10 Amp Relay Series
  • DC Actuating System
  • Coil Voltage = 28 VDC
  • Contact Arrangement = 2 Form C, DPDT, 2 C/O
  • Current Rating = 5 Amps.

Search Keywords: FCB2050224M

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
TE Connectivity / CII Brand
Part No:
FCB-205-0224M
Alias/AKA:
5-1617758-0, M83536/2-024M
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536490050
COO:
IN
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1
Package Type:
Pack
Type:
Military Relay
Relay Construction:
Non-Latching
Contact Arrangement:
DPDT
AC Coil Voltage:
N/A
DC Coil Voltage:
28 V
Maximum Current Rating:
5 A
Coil Current:
56 mA
Coil Resistance:
500 Ohm
Mounting:
Flange Mount
Operating Temperature:
N/A
Termination Style:
Solder Pin

IN STOCK: 534

Can Ship immediately

On Order: 1,000   can ship 7/1/26

Factory Lead-Time 19 Weeks

Price (USD)

Qty
Unit Price
1
$157.56
5
$152.94
10
$151.41
20
$150.66
50
$148.36
100 +
$145.85
Log in for special pricing Click for Quote Price Match Request
Please Note: Tariffs may apply for U.S. shipments

Tools/3D Models

Product Guides

Product Changes
