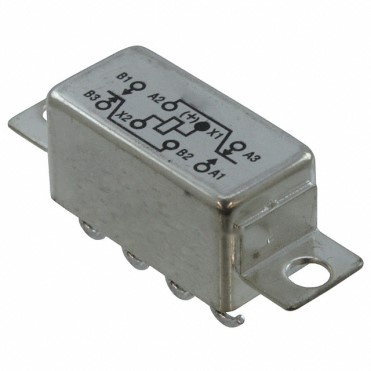

HFW1201K45M by te connectivity / cii brand

HFW1201K45M

TE Connectivity / CII Brand

Electromechanical Relay 26.5VDC 700Ohm 2A DPDT (20.57x10.41x10.41)mm THT Half Size High Performance Relay ...

Datasheet
RoHS Non-Compliant
Pack Packaging
Accessories
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

The TE Connectivity / CII Brand part HFW1201K45M is a versatile electromechanical relay with a compact design and high performance capabilities. This relay operates at a voltage of 26.5VDC and has a resistance of 700 Ohm. With a switching capacity of 2A, this relay is perfect for various electrical applications. The DPDT (Double-Pole Double-Throw) configuration allows for versatile switching options. The relay has a compact size of 20.57x10.41x10.41mm, making it suitable for applications with limited space. It is designed for through-hole mounting (THT) and offers reliable performance in a wide range of industrial and commercial settings. The TE Connectivity / CII Brand HFW1201K45M relay is an excellent choice for applications that require high-performance and compact design.

Product Highlights:

  • HFW Half-Size Relay Series
  • Input Voltage = 26.5 VDC
  • Contact Arrangement = 2 Form C, DPDT, 2 C/O
  • Contact Current Rating = 2 Amps.
  • Non Polarized, Monostable Coil Magnetic System

Search Keywords: HFW1201K45M

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
TE Connectivity / CII Brand
Part No:
HFW1201K45M
RoHS:
No
HTS:
8536490050
COO:
IN
ECCN:
EAR99
Supplier Standard Pack:  This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1
Package Type:
Pack
Type:
Half Size High Performance Relay
Relay Construction:
Non-Latching
Contact Arrangement:
DPDT
AC Coil Voltage:
N/A
DC Coil Voltage:
26.5 V
Maximum Current Rating:
2 A
Coil Current:
37.86 mA
Coil Resistance:
700 Ohm
Mounting:
Through Hole
Operating Temperature:
-65 to 125 °C
Termination Style:
PC Pin

IN STOCK: 419

Ships today, if you order in

On Order: 500   can ship 2/11/26
On Order: 500   can ship 2/25/26

Factory Lead-Time 33 Weeks

Price (USD)

Qty
Unit Price
1
$52.417
5
$50.048
10
$48.451
25
$46.515
50
$45.825
100
$45.361
250 +
$45.135
Log in for special pricing
Click for Quote
Please Note: Tariffs may apply for U.S. shipments
