HFW5A1201K00 by te connectivity / cii brand

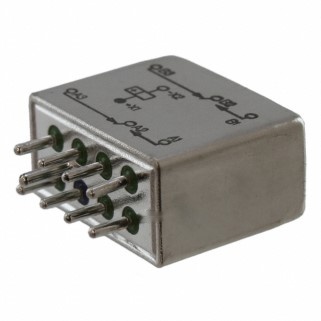

Image is representational - see mfr. specs

HFW5A1201K00

TE Connectivity / CII Brand

General Purpose Relay - DPDT (2 Form C) - 26.5VDC Coil - 5A Contact - 28VDC Switching - Non Latching Coil - PC Pin - Through Hole. ...

Datasheet
RoHS Compliant
Pack Packaging
Accessories
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

The HFW5A1201K00 is hermetically sealed general purpose relay with operating temperature range from -65°C to 125°C.

Product Highlights:

  • HFW5A Half-Size Relay Series
  • Input Voltage = 26.5 VDC
  • Contact Arrangement = 2 Form C, DPDT, 2 C/O
  • Contact Current Rating = 5 Amps.
  • Non Polarized, Monostable Coil Magnetic System

Search Keywords: HFW5A1201K00

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
TE Connectivity / CII Brand
Part No:
HFW5A1201K00
Alias/AKA:
1617037-9
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536490050
COO:
IN
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1
Package Type:
Pack
Type:
Half Size High Performance Relay
Relay Construction:
Non-Latching
Contact Arrangement:
DPDT
AC Coil Voltage:
N/A
DC Coil Voltage:
26.5 V
Maximum Current Rating:
2 A
Coil Current:
37.86 mA
Coil Resistance:
700 Ohm
Mounting:
Through Hole
Operating Temperature:
-65 to 125 °C
Termination Style:
PC Pin

IN STOCK: 746

Ships today, if you order in

On Order: 152   can ship 5/13/26

Factory Lead-Time 20 Weeks

Price (USD)

Qty
Unit Price
1
$136.36
5
$129.79
10
$127.85
20
$126.58
50
$124.68
100 +
$124.06
Log in for special pricing Click for Quote Price Match Request
