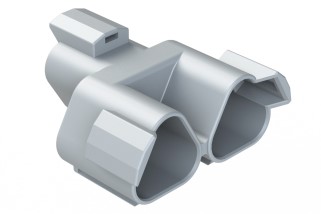

2286003-3

Products found: 0

Supplier:

TE Connectivity / Deutsch Automotive

Part No:

2286003-3

RoHS:

Yes

HTS:

8538906000

COO:

MA

ECCN:

EAR99

Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.

This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.

1

Width:

.591 in, 15 mm

Operating Temperature Range:

-55 – 125 °C, -67 – 257 °F

Degree of Protection:

IP67

Mounting Feature:

Without

Connector & Housing Type:

Housing for female terminals

Connector Position Assurance Capable:

No

Primary Product Color:

Natural

Strain Relief:

No

Connector System:

Wire-to-Wire

Number of Rows:

1

Number of Positions:

2

Cable Exit Angle:

180 °

Height:

.622 in, 15.8 mm

Hybrid Connector:

No

Length:

1.244 in, 31.6 mm

Serviceable:

Yes

Sealable:

Yes

Terminal Position Assurance:

Yes

Polarized:

No

Operating Temperature (Max):

100 °C, 105 °C, 110 °C, 120 °C, 125 °C, 70 °C, 75 °C, 80 °C, 85 °C, 90 °C

Primary Locking Feature:

Integrated in Housing

Centerline (Pitch):

.175 in, 4.5 mm

Nominal Voltage Architecture:

12 V, 24 V, 42 V, 48 V

Operating Voltage:

48 VDC

Body Material:

Other

UL Flammability Rating:

UL 94V-0
