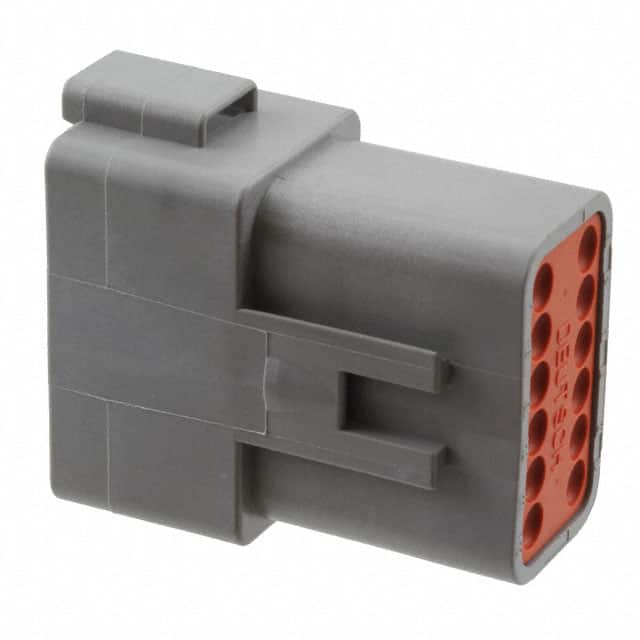

RECOMMENDED REPLACEMENT

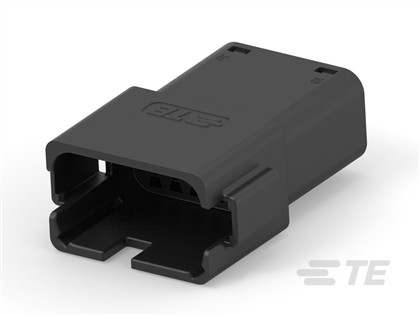

Image is representational - see manufacturer specifications
2600042-7
12CCT RECEP BLACK K A W/LARGE SEAL
RoHS Compliant
Discontinued & Replaced
DESCRIPTION
12CCT RECEP BLACK K A W/LARGE SEAL
Search Keywords: 26000427
SPECIFICATIONS
Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
TE Connectivity / Deutsch Automotive
Part No:
2600042-7
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8538906000
COO:
CN
ECCN:
EAR99
Supplier's Standard Package:
1
Connector & Housing Type:
Receptacle
Connector Code:
A
Connector System:
Wire-to-Wire
Number of Rows:
2
Connector Position Assurance Capable:
No
Primary Product Color:
Black
Sealable:
Yes
Number of Positions:
12
Primary Locking Feature:
Integrated in Housing
Hybrid Connector:
No
Connector Mounting Type:
Cable Mount (Free-Hanging)
Operating Temperature Range:
-55 – 125 °C, -67 – 257 °F
Operating Temperature (Max):
125 °C, 257 °F
Centerline (Pitch):
.175 in, 4.45 mm
Mating Pin Diameter:
.061 in, 1.56 mm
Connector & Contact Terminates To:
Wire & Cable
Life Cycle:
Discontinued & Replaced
This product is discontinued, but still in stock
IN STOCK: 1,500
Ships today, if you order in
Minimum Order Quantity: 50
Price (USD)
Qty
Unit Price
50
$2.02
200
$1.98
350
$1.96
650
+
$1.92
Datasheet
