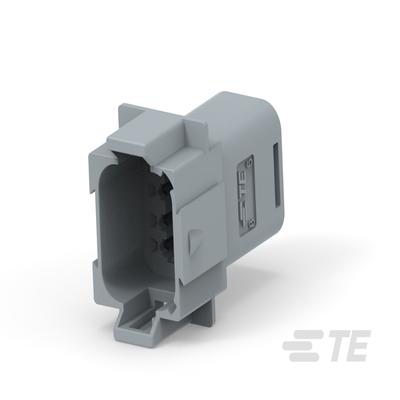

DT04-08PA-C015 by te connectivity / deutsch automotive
Image is representational - see manufacturer specifications

DT04-08PA-C015

REC, 8P, GRY, E, A

View Datasheet Ask the Datasheet
RoHS Compliant
Pack Packaging
Accessories
Certificate of Compliance

DESCRIPTION

TE Connectivity's Deutsch Automotive DT04-08PA-C015 is a high-quality receptacle connector featuring 8 pins in a durable gray housing. This connector is designed for efficient and reliable electrical connections in automotive applications.

Search Keywords: DT0408PAC015

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
TE Connectivity / Deutsch Automotive
Part No:
DT04-08PA-C015
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8538906000
COO:
MX
ECCN:
EAR99
Supplier's Standard Package: The item count, length, weight, or volume contained in the supplier’s original packaging for efficient storage, handling, and distribution.
1
Package Type:
Pack
Mating Pin Diameter:
.0625 in, 1.59 mm
Operating Voltage:
250 VAC
Row-to-Row Spacing:
.175 in, 45.45 mm
Operating Temperature Range:
-55 – 125 °C, -67 – 257 °F
Connector & Housing Type:
Housing for Male Terminals
Agency/Standard:
SAE J2030
Operating Temperature (Max):
125 °C, 257 °F
Connector Code:
A
Primary Product Color:
Gray
Blank Cavity Position:
0
Hybrid Connector:
No
Contact Current Rating (Max):
13 A
Connector Mounting Type:
Cable Mount (Free-Hanging) , Fixing Screw
Degree of Protection:
IP68 , IP6K9K
Terminal Position Assurance:
Yes
Packaging Method:
Box
Number of Positions:
8
Strain Relief:
Add By Accessory
Length:
1.798 in, 45.67 mm
Packaging Quantity:
350
Cable Exit Angle:
180 °
Primary Locking Feature:
Integrated in Housing
UL Flammability Rating:
12mm Flame Test per Standard UL-94
Connector Position Assurance Capable:
No
Width:
1.435 in, 36.45 mm
Polarized:
Yes
Height:
.94 in, 23.88 mm
Mounting Feature:
With
Connector System:
Wire-to-Wire
Nominal Voltage Architecture:
12 V, 24 V, 48 V
Number of Rows:
2
Body Material:
PA GF
Serviceable:
Yes
Sealable:
Yes
Circuit Application:
Power & Signal
Centerline (Pitch):
.359 in, 9.12 mm
