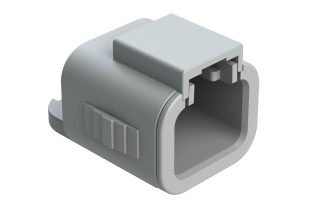

DT04-6P-CE01 by te connectivity / deutsch automotive

DT04-6P-CE01

TE Connectivity / Deutsch Automotive

REC, 6P, GRY, E, CAP ...

Datasheet
RoHS Compliant
Packaging
Accessories
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

The TE Connectivity / DEUTSCH Automotive DT04-6P-CE01 is a robust and reliable connector designed for demanding automotive and industrial applications. This high-quality rectangular connector features 6 precision-engineered pins, ensuring secure and efficient electrical connections. Encased in a durable gray housing, it offers excellent resistance to environmental factors, making it ideal for use in harsh conditions. The connector includes an end cap for added protection and integrity of the connection. Known for its ease of use and high performance, the DT04-6P-CE01 is a top choice for professionals seeking dependable connectivity solutions. Whether for wiring harnesses, engine compartments, or off-road applications, this connector ensures consistent performance and longevity.

Search Keywords: DT046PCE01

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
TE Connectivity / Deutsch Automotive
Part No:
DT04-6P-CE01
RoHS:
Yes
HTS:
8538906000
COO:
US
ECCN:
EAR99
Supplier Standard Pack:  This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1
Sealable:
Yes
Connector Position Assurance Capable:
No
Connector & Housing Type:
Housing for Male Terminals
UL Flammability Rating:
12mm Flame Test per Standard UL-94
Blank Cavity Position:
0
Number of Positions:
6
Packaging Method:
Box
Primary Product Color:
Gray
Packaging Quantity:
500
Agency/Standard:
SAE J2030
Primary Locking Feature:
Integrated in Housing
Number of Rows:
3
Serviceable:
Yes
Strain Relief:
Add By Accessory
Terminal Position Assurance:
Yes
Contact Current Rating (Max):
13 A
Connector System:
Wire-to-Wire
Cable Exit Angle:
180°
Mating Pin Diameter:
.063 in, 1.59 mm
Centerline (Pitch):
.359 in, 9.12 mm
Operating Temperature (Max):
125 °C, 257 °F
Product Length:
1.868 in, 47.19 mm
Operating Voltage:
250 VAC, 250 VDC
Nominal Voltage Architecture:
12 V, 24 V, 48 V
Row-to-Row Spacing:
.175 in, 4.45 mm
Operating Temperature Range:
-55 – 125 °C, -67 – 257 °F
Product Width:
.82 in, 20.83 mm
Degree of Protection:
IP68 , IP6K9K
Circuit Application:
Power & Signal
Connector & Contact Terminates To:
Wire & Cable
Mating Alignment:
With
Connector Height:
.972 in, 24.69 mm
Contact Type:
Pin
Connector Mounting Type:
Cable Mount (Free-Hanging)
Housing Material:
PA GF
Contact Size:
Size 16
Mating Alignment Type:
Polarized
Connector Shape:
Rectangular

IN STOCK: 335

Can Ship immediately

Minimum Order: 5

Factory Lead-Time 5 Weeks

Price (CAD)

Qty
Unit Price
5
$3.920
50
$2.878
100
$2.802
250
$2.756
500
$2.695
1,000
$2.681
2,500
$2.664
5,000 +
$2.649
