DT04-6P-E005 by te connectivity / deutsch automotive

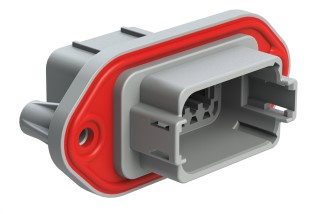

Image is representational - see mfr. specs

DT04-6P-E005

TE Connectivity / Deutsch Automotive

REC, 6P, BLK, N, CAP ...

Datasheet
RoHS Compliant
Packaging
Accessories
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

TE Connectivity / Deutsch Automotive part DT04-6P-E005 is a reliable and high-performing rectangular electrical connector. This connector belongs to the DT Series and has six recessed contacts (REC) for secure electrical connections. It features a sleek black housing with a protective cap for added durability and safety. The DT04-6P-E005 connector is designed for use in automotive applications and is noted for its exceptional electrical performance and resistance to harsh environmental conditions.

Search Keywords: DT046PE005

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
TE Connectivity / Deutsch Automotive
Part No:
DT04-6P-E005
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8538906000
COO:
US
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1
Polarized:
Yes
Agency/Standard:
SAE J2030
Number of Rows:
3
Centerline (Pitch):
.359 in, 9.12 mm
Connector Position Assurance Capable:
No
Mating Pin Diameter:
.0625 in, 1.59 mm
Operating Temperature (Max):
125 °C, 257 °F
Connector & Housing Type:
Housing for Male Terminals
Operating Temperature Range:
-55 – 125 °C, -67 – 257 °F
Length:
1.868 in, 47.19 mm
Serviceable:
Yes
Operating Voltage:
250 VAC
Width:
.82 in, 20.83 mm
Hybrid Connector:
No
Primary Locking Feature:
Integrated in Housing
Connector Mounting Type:
Cable Mount (Free-Hanging) , Fixing Screw
Connector System:
Wire-to-Wire
Primary Product Color:
Black
Mounting Feature:
With
Packaging Method:
Box
Row-to-Row Spacing:
.175 in, 4.45 mm
Sealable:
Yes
UL Flammability Rating:
12mm Flame Test per Standard UL-94
Strain Relief:
Add By Accessory
Degree of Protection:
IP68 , IP6K9K
Cable Exit Angle:
180 °
Nominal Voltage Architecture:
12 V, 24 V, 48 V
Body Material:
PA GF
Height:
.951 in, 24.16 mm
Packaging Quantity:
500
Terminal Position Assurance:
Yes
Contact Current Rating (Max):
13 A
Blank Cavity Position:
0
Number of Positions:
6
Circuit Application:
Power & Signal

IN STOCK: 1,590

Can Ship immediately

Minimum Order Quantity: 10

Factory Lead-Time 13 Weeks

Price (USD)

Qty
Unit Price
10
$2.66
100
$1.81
250
$1.76
500
$1.72
1,000 +
$1.71
