DT06-3S-CE04 by te connectivity / deutsch automotive

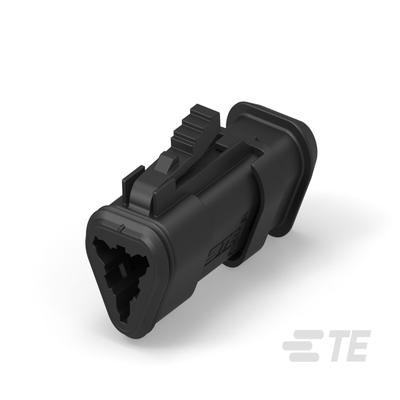

Image is representational - see mfr. specs

DT06-3S-CE04

TE Connectivity / Deutsch Automotive

PLG, 3P, GRY, E, XCAP

RoHS Compliant
Packaging
Accessories
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

The TE Connectivity / Deutsch Automotive part DT06-3S-CE04 is a 3-pin gray plug connector with a sealing cap included. This high-quality automotive connector is designed for durability and reliability in a variety of applications.

Search Keywords: DT063SCE04

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
TE Connectivity / Deutsch Automotive
Part No:
DT06-3S-CE04
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8538906000
COO:
US
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1
Cable Exit Angle:
180 °
UL Flammability Rating:
12mm Flame Test per Standard UL-94
Mating Pin Diameter:
.0625 in, 1.59 mm
Primary Product Color:
Gray
Connector & Housing Type:
Housing for female terminals
Polarized:
Yes
Sealable:
Yes
Centerline (Pitch):
.394 in, 10.01 mm
Packaging Quantity:
900
Connector Position Assurance Capable:
No
Agency/Standard:
SAE J2030
Degree of Protection:
IP68 , IP6K9K
Operating Temperature (Max):
125 °C, 257 °F
Strain Relief:
Add By Accessory
Length:
1.601 in, 40.67 mm
Terminal Position Assurance:
Yes
Packaging Method:
Box
Mounting Feature:
Without
Circuit Application:
Power & Signal
Number of Positions:
3
Operating Voltage:
250 VAC
Hybrid Connector:
No
Contact Current Rating (Max):
13 A
Operating Temperature Range:
-55 – 125 °C, -67 – 257 °F
Connector System:
Wire-to-Wire
Height:
.968 in, 24.6 mm
Body Material:
PA GF
Serviceable:
Yes
Primary Locking Feature:
Integrated in Housing
Nominal Voltage Architecture:
12 V, 24 V, 48 V
Blank Cavity Position:
0
Width:
.796 in, 20.23 mm
  Possible Replacement options available.  See Alternatives

IN STOCK: 936

Can Ship immediately

Minimum Order Quantity: 25

Factory Lead-Time 13 Weeks

Price (USD)

Qty
Unit Price
25
$1.79
100
$1.62
250
$1.49
500
$1.42
1,000
$1.32
2,500
$1.27
5,000 +
$1.25
